Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bench seat from the vehicle.
  2. The rear bench seat release lever is a 2 stage mechanism. In order to release the latch, 2 levels of lift effort are required:
    1. A low lift effort to overcome the first stage
    2. A second lift effort in order to fully release the latch mechanism

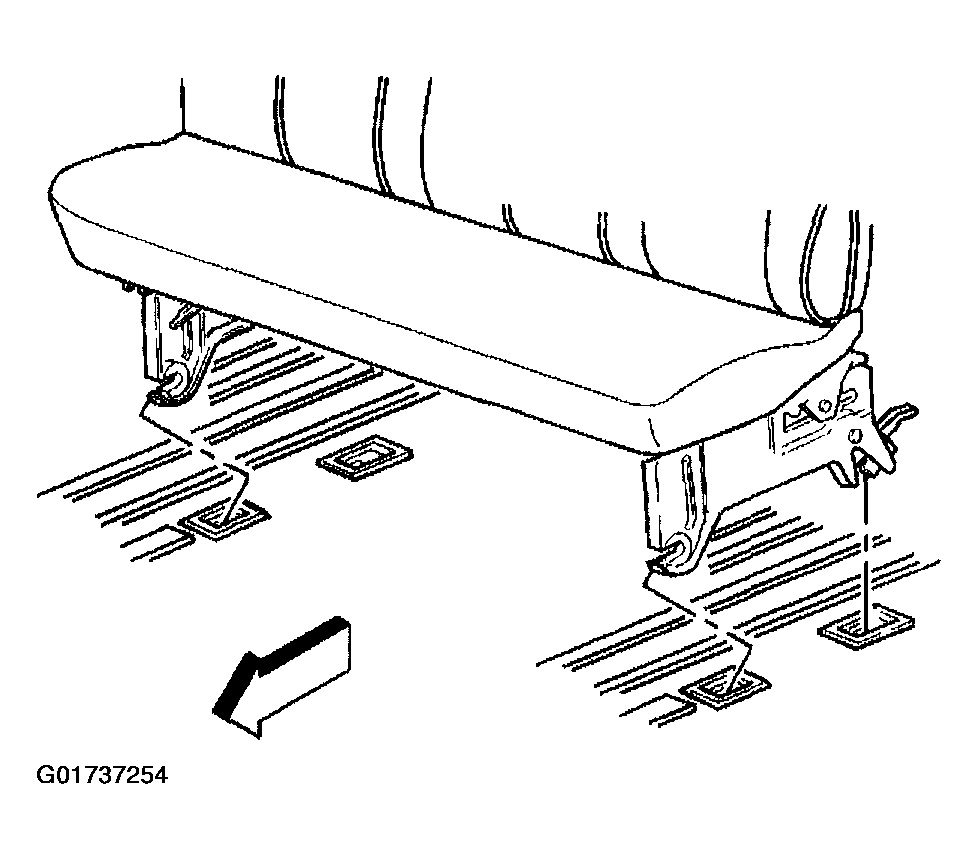

    Fig 1: Removing Rear Bench Seat
    G01737254Courtesy of GENERAL MOTORS CORP.
  3. Release the latch mechanism.
  4. Remove the rear bench seat from the vehicle.

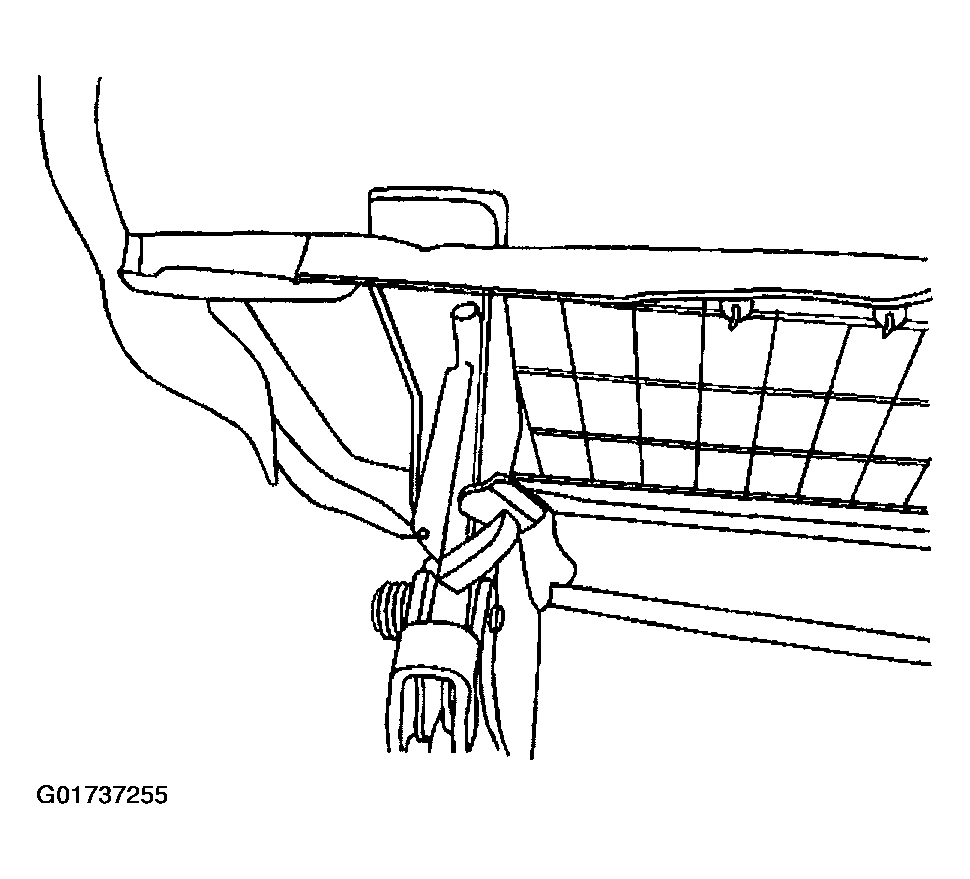

    Fig 2: Releasing Latch Mechanism
    G01737255Courtesy of GENERAL MOTORS CORP.
  5. Remove the front seat riser bolts from the rear bench seat.
  6. Remove the rear seat riser bolts from the rear bench seat.
  7. Remove the seat risers from the rear bench seat.

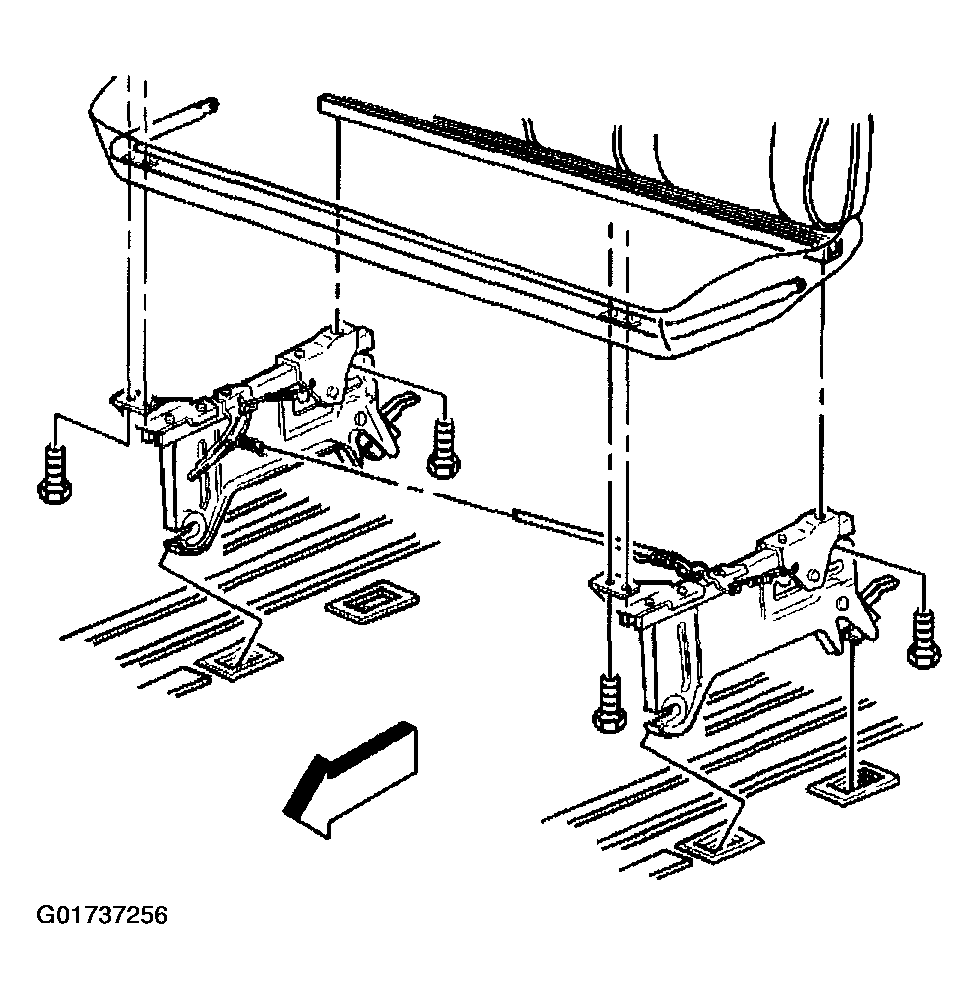

Fig 3: Removing Seat Risers & Bolts
G01737256Courtesy of GENERAL MOTORS CORP.
