Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat to the vehicle.

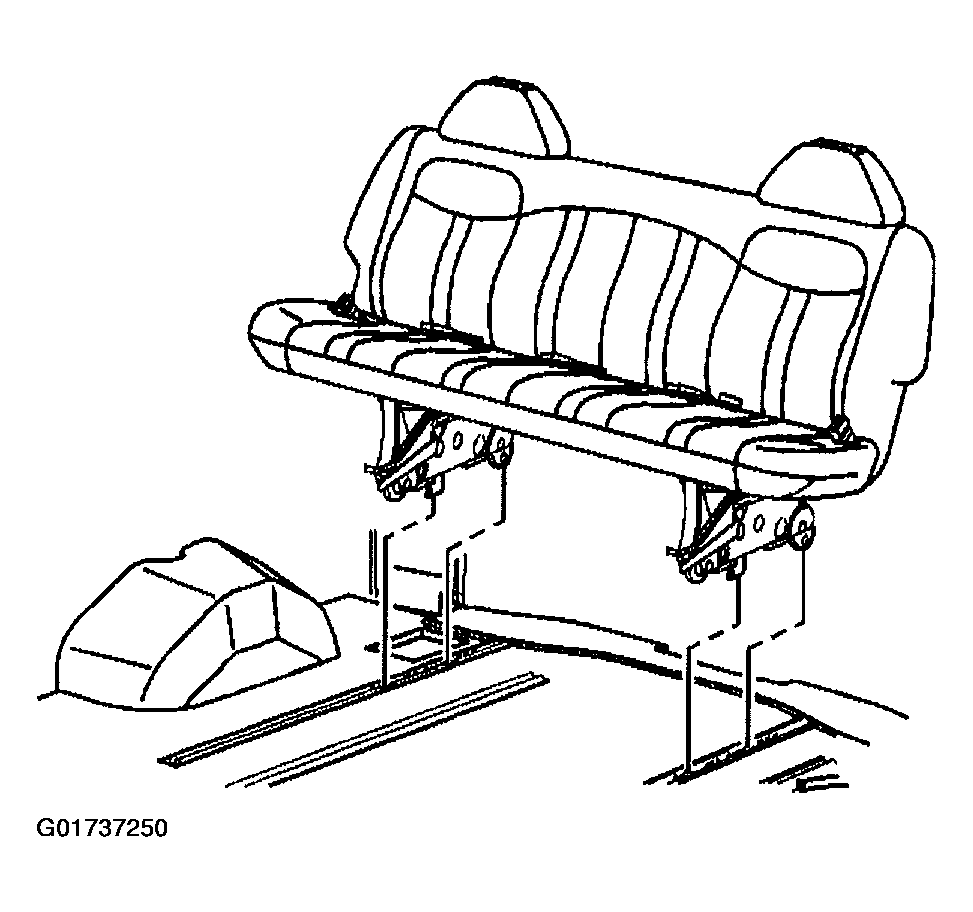

    Fig 1: Installing Seat
    G01737250Courtesy of GENERAL MOTORS CORP.
  2. Align the seat attaching points with the slots in the floor rail.
  3. Push the seat forward in the rail in order to lock the front of the seat risers onto the pins on the inside of the floor rail.

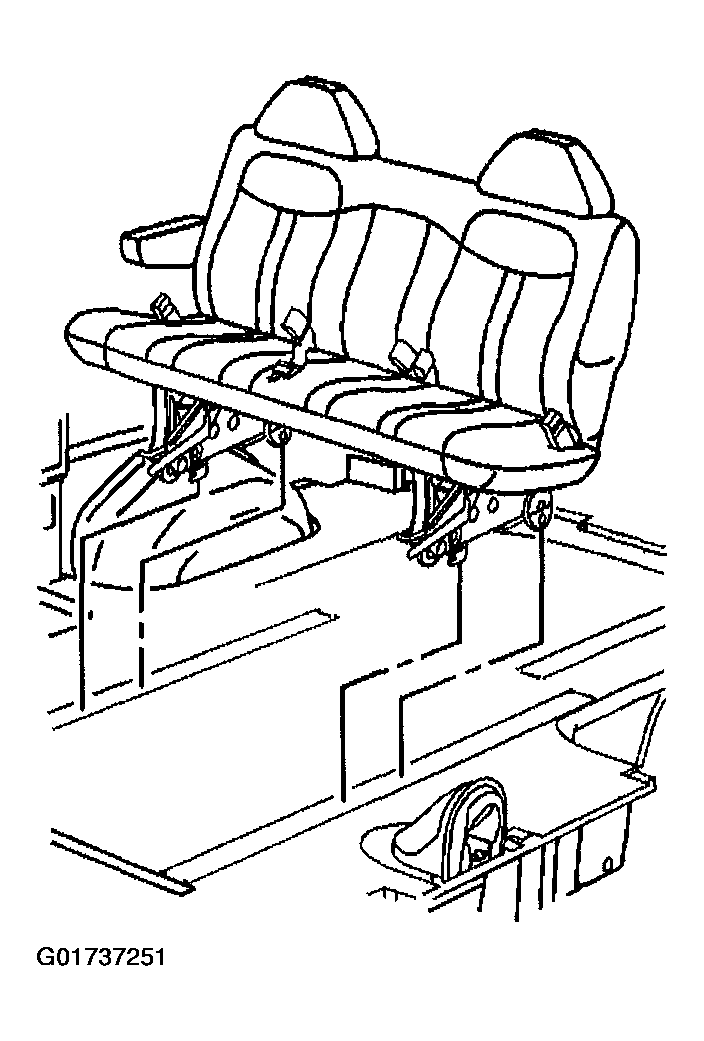

    Fig 2: Locking Seat Risers Onto Pins
    G01737251Courtesy of GENERAL MOTORS CORP.
  4. Remove the locking pin (3) from the stored position at the rear of the seat riser (2).

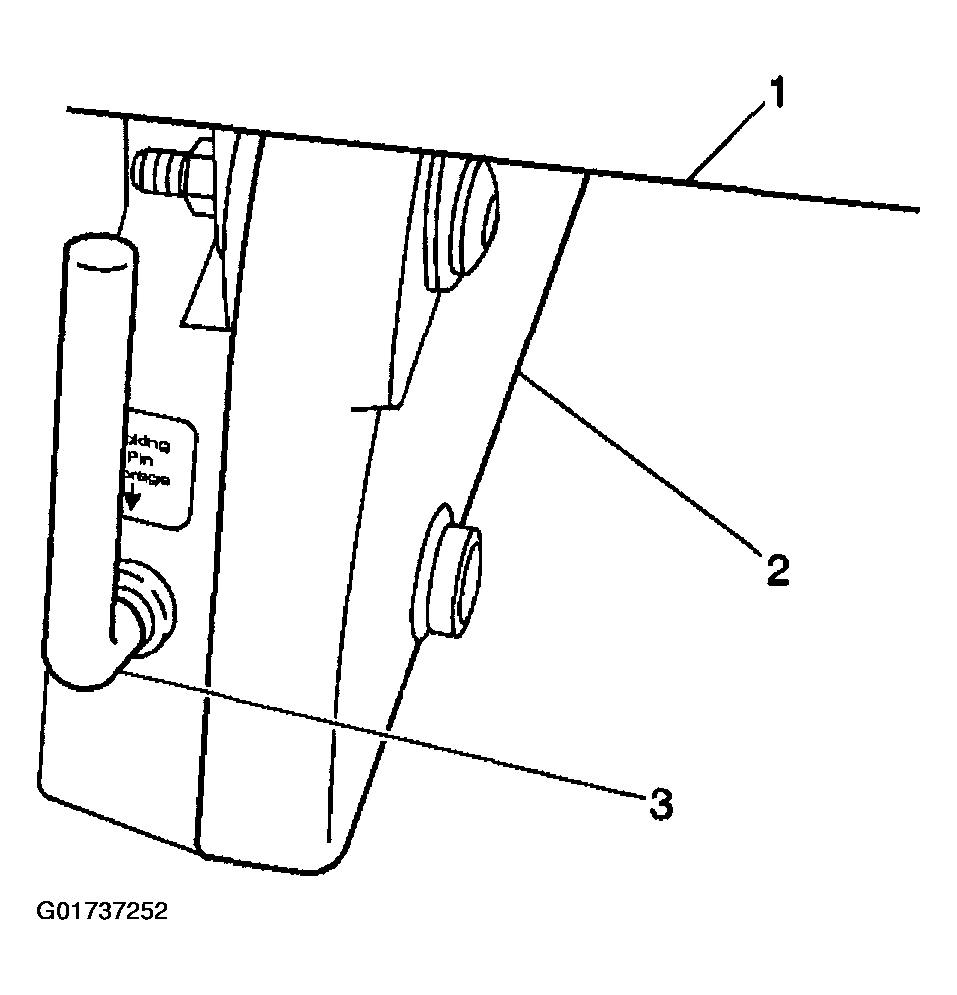

    Fig 3: Removing Locking Pin From Stored Position
    G01737252Courtesy of GENERAL MOTORS CORP.
  5. Locate the hole in the floor rail at the rear of the seat riser (2) and insert the locking pin.
  6. Rotate the locking pin (3) at the rear of the seat riser (1) into the retaining clip.
  7. Insert the latch plate into the seat belt buckle in order to install the quick release latch plate for the lap/shoulder belt.
  8. Push in order to engage the latch plate with the seat belt buckle.

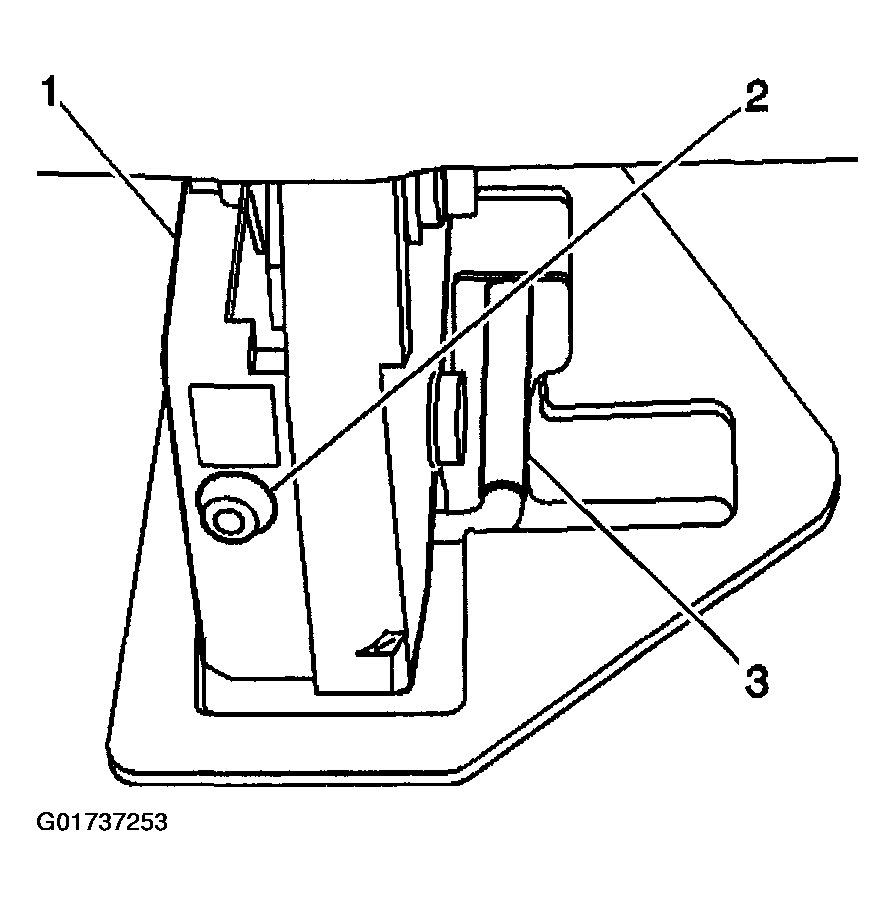

Fig 4: Inserting Locking Pin
G01737253Courtesy of GENERAL MOTORS CORP.
