Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power seat to the seat risers if equipped. Refer to Seat Adjuster Replacement - Front .
  2. Install the seat belt guide to the seat riser.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring the use of thread locking compound or sealant are identified in corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the nuts that retain the seat to the risers.

    Tighten

    Tighten the nuts that retain the seat to the riser to 43 N.m (32 ft lbs).

  4. Install the front lower speaker to the passenger seat, if needed. Refer to AMPLIFIER AND/OR SPEAKER REPLACEMENT - FRONT SEAT (LUXURY Y91) .
  5. Install the seat and the seat riser to the vehicle.
  6. Connect the electrical connector.

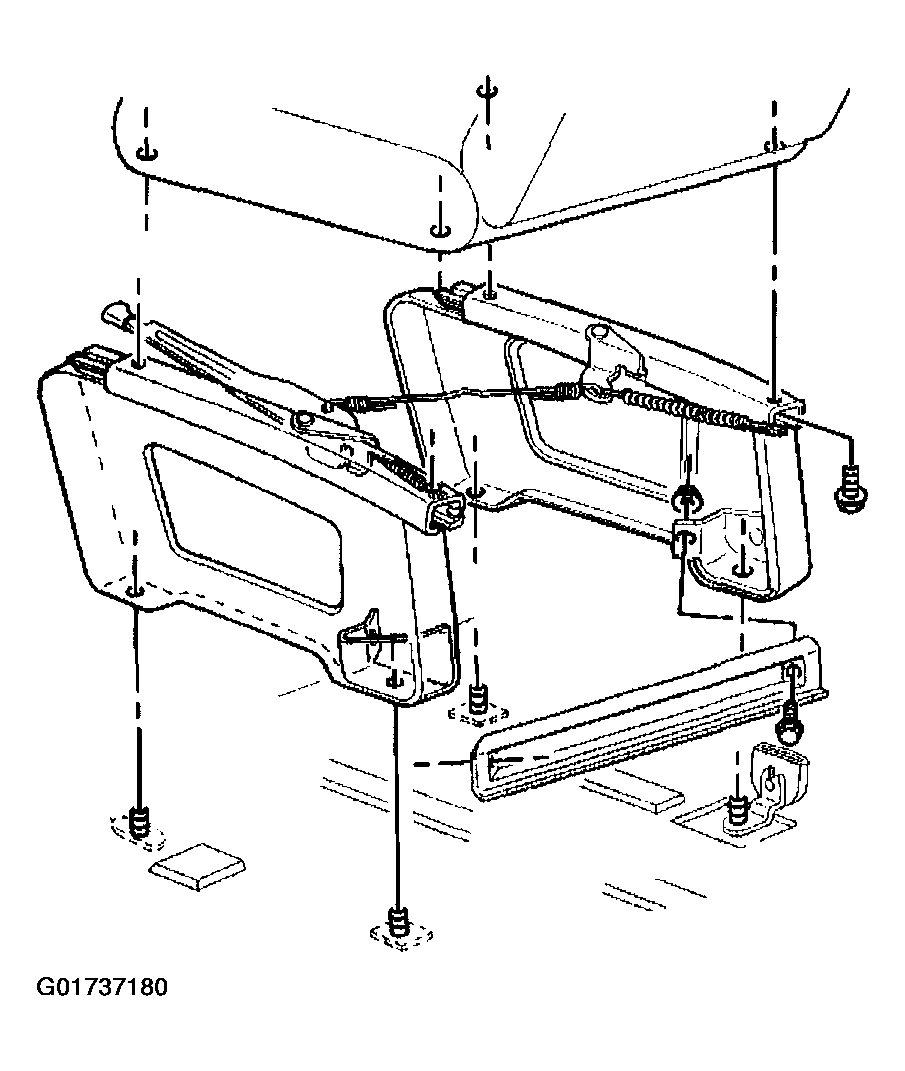

    Fig 1: Installing Nuts, Seat & Seat Riser
    G01737180Courtesy of GENERAL MOTORS CORP.
  7. Install the nuts that retain the seat riser to the floor.

    Tighten

    Tighten the nuts that retain the seat riser to the floor to 43 N.m (32 ft lbs).

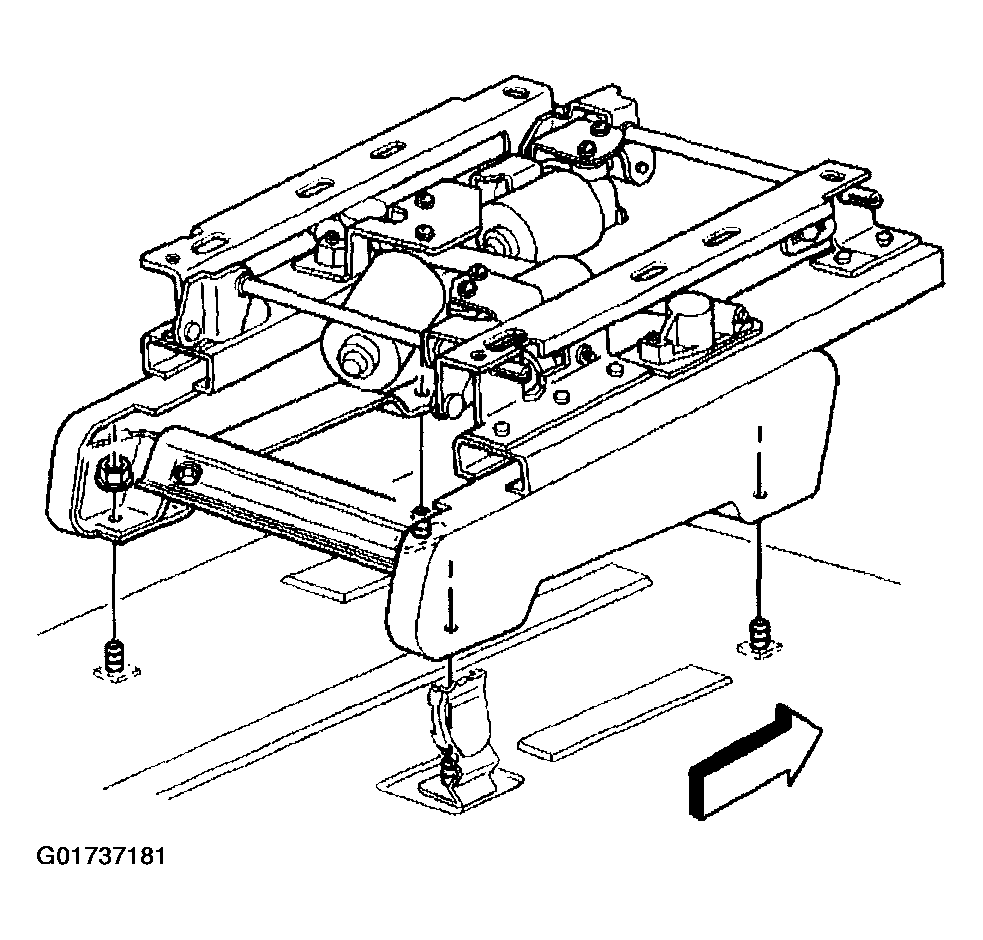

Fig 2: Installing Nuts Retaining Seat Riser
G01737181Courtesy of GENERAL MOTORS CORP.
