Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bench seat from the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury)  or Seat Replacement - Rear Bench (Luxury Y91)  .
  2. Remove the seat cushion cover and pad. Refer to Seat Cushion Cover and Pad Replacement - Rear (Luxury Y91)  or Seat Cushion Cover and Pad Replacement - Rear (All Except Luxury)  .

    Important:  Note the position and length of the bolts removed. This will assist with reassembly.

  3. Remove the bolts retaining the seat back hinges to the seat cushion frame.

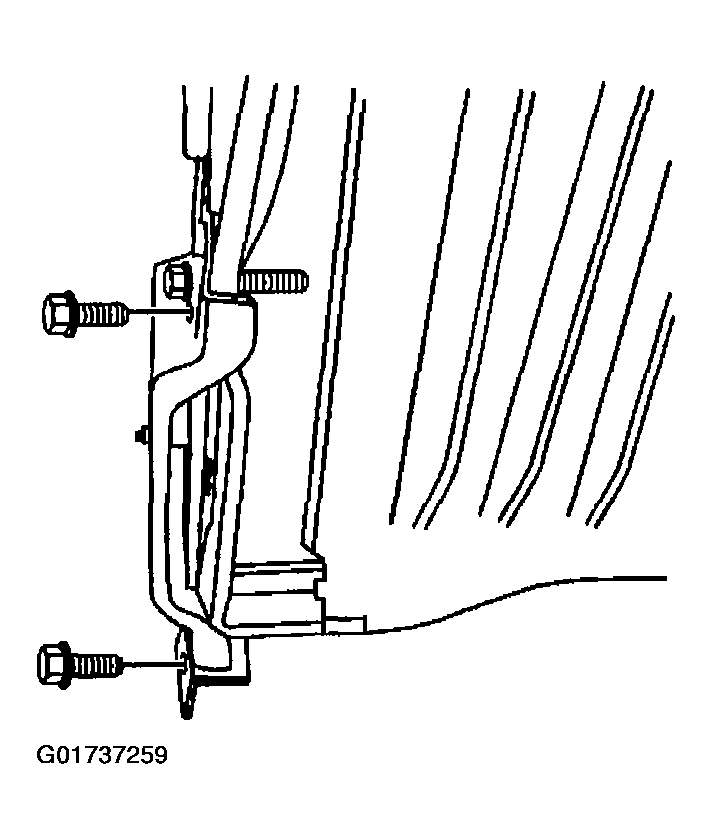

    Fig 1: Removing Bolts Retaining Seat Back Hinges
    G01737259Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat cushion frame.

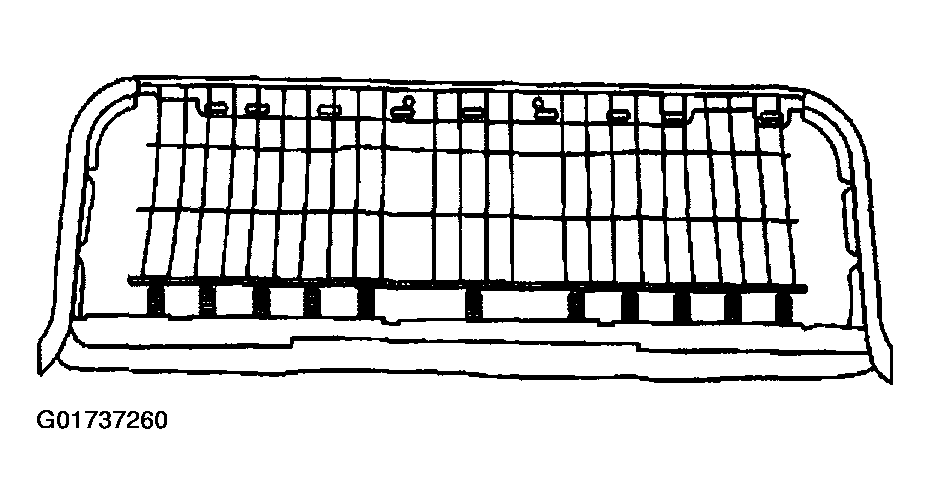

Fig 2: Removing Seat Cushion Frame
G01737260Courtesy of GENERAL MOTORS CORP.
