Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion cover (3) to the foam pad (1).
  2. Engage the hook and loop strips that retain the seat cushion cover to the seat cushion foam pad.
  3. Install the seat cushion cover to the seat cushion frame (2).
  4. Install the power seat adjuster switch, if equipped. Refer to Seat Switch Replacement - Power .
  5. Install the recliner handle. Refer to Seat Back Recliner Handle Replacement - Front (All Except Luxury)  or Seat Back Recliner Handle Replacement - Front (Luxury Y91)  .

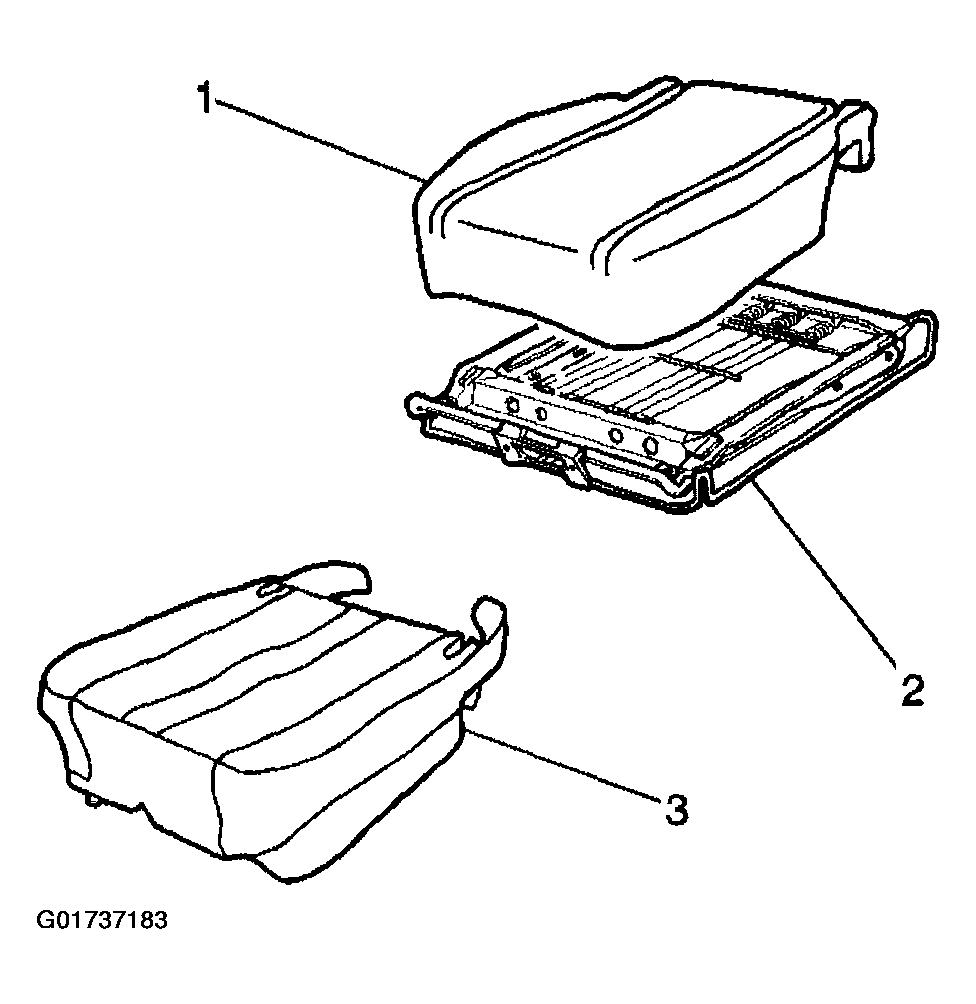

Fig 1: Installing Seat Cushion Cover
G01737183Courtesy of GENERAL MOTORS CORP.
