Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back recliner lever to the seat back recliner.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring the use of thread locking compound or sealant are identified in corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the screw that retains the seat back recliner lever.

    Tighten

    Tighten the screw that retain the seat back recliner lever to 2 N.m (18 in lbs).

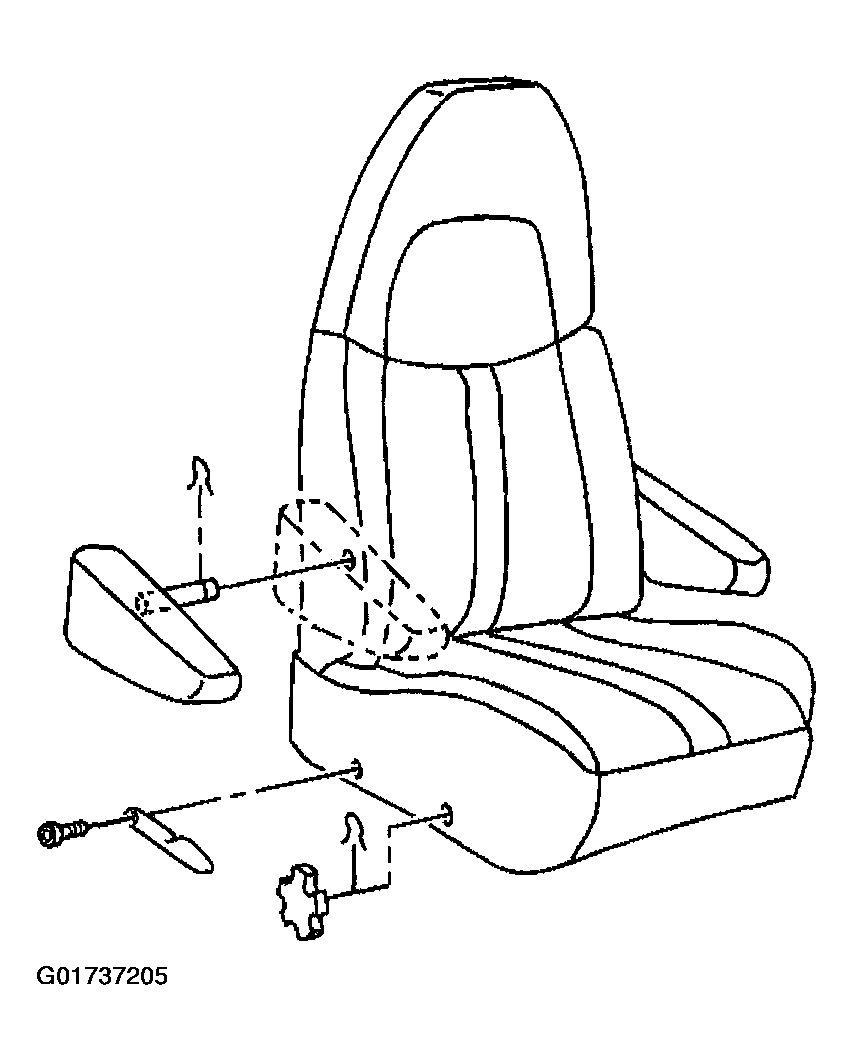

Fig 1: Installing Seat Back Recliner Handle - Front (Luxury Y91)
G01737205Courtesy of GENERAL MOTORS CORP.
