Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bucket seat from the vehicle. Refer to Seat Replacement - Bucket (All Except Luxury)  or Seat Replacement - Bucket (Luxury Y91)  .
  2. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front (All Except Luxury)  or Seat Back Cover and Pad Replacement - Front (Luxury Y91)  .

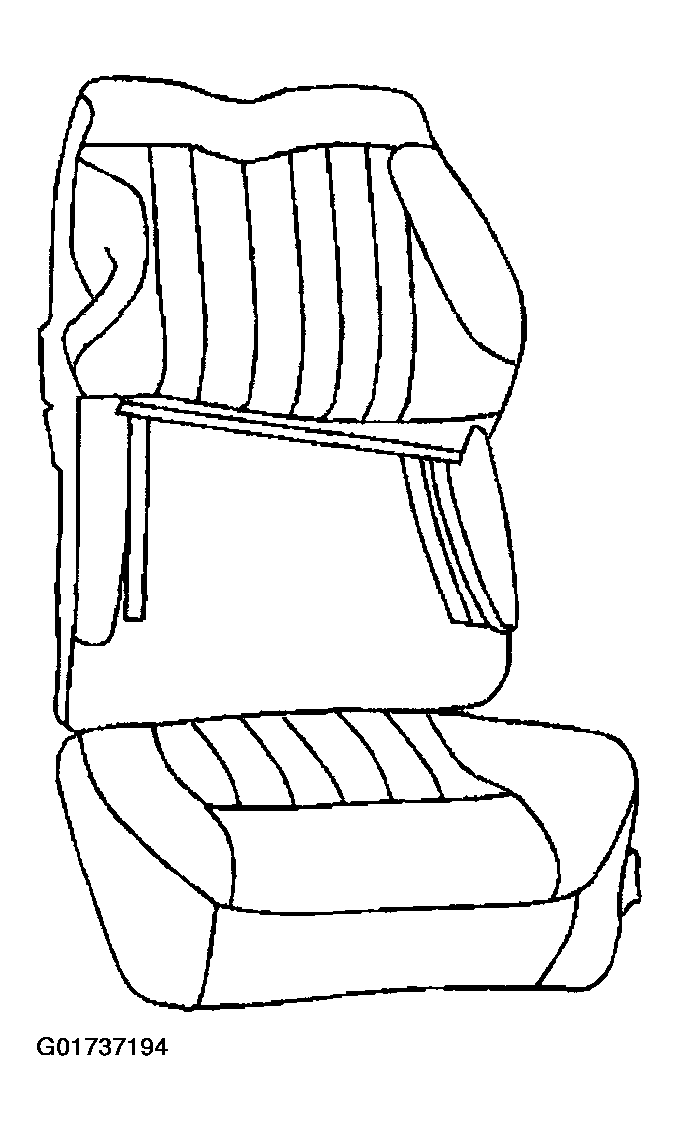

    Fig 1: Removing Seat Back Cover & Pad
    G01737194Courtesy of GENERAL MOTORS CORP.
  3. Remove the lumbar support cable. Refer to Lumbar Support Cable Replacement (Luxury (Y91)) .
  4. Remove the bolts from the seat back hinges on the right and left side.
  5. Remove the seat back frame.

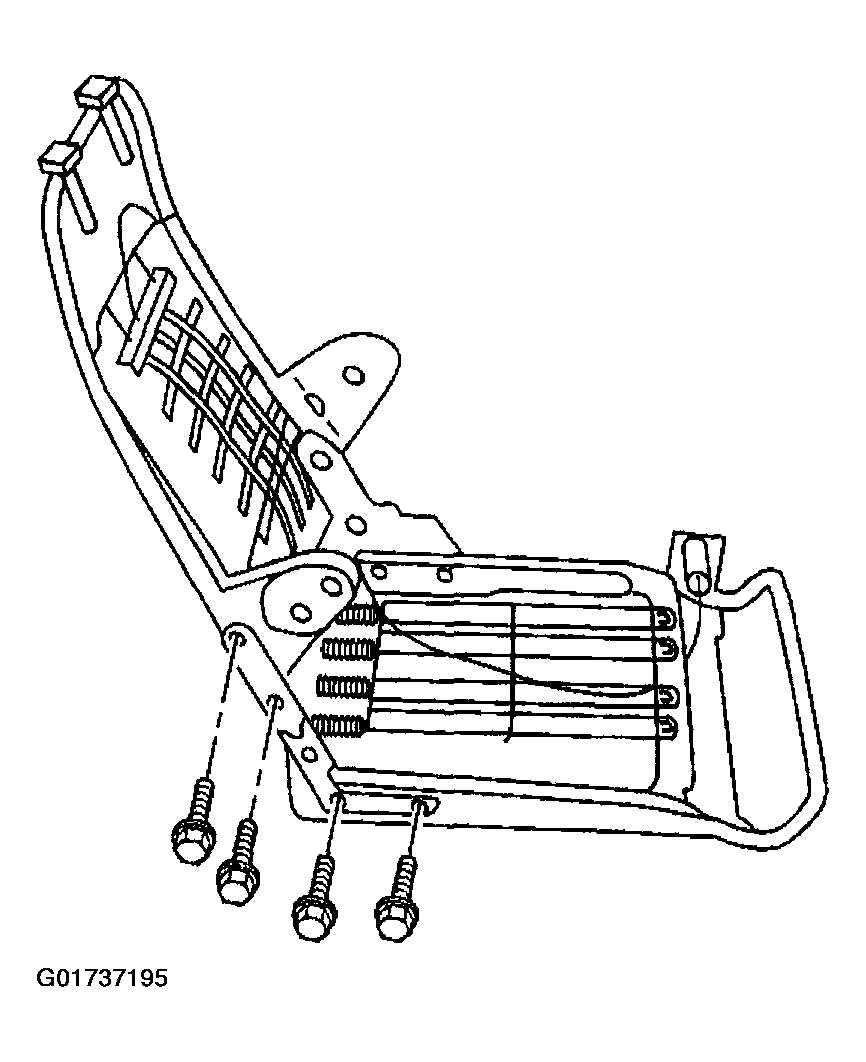

Fig 2: Removing Seat Back Hinge Bolts & Seat Back Frame
G01737195Courtesy of GENERAL MOTORS CORP.
