Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the armrest from the seatback. Refer to Armrest Replacement - Rear Seat (All Except Luxury)  or Armrest Replacement - Rear Seat (Luxury Y91)  .
  2. Release the bottom edge of the seatback cover (3).
  3. Release the hook and loop strips that retain the seatback cover to the seatback foam pad (2).
  4. In order to ease removal, place a piece of cardboard between the seatback cover and the foam pad.
  5. Working from side to side, carefully lift the seatback cover from the foam pad.

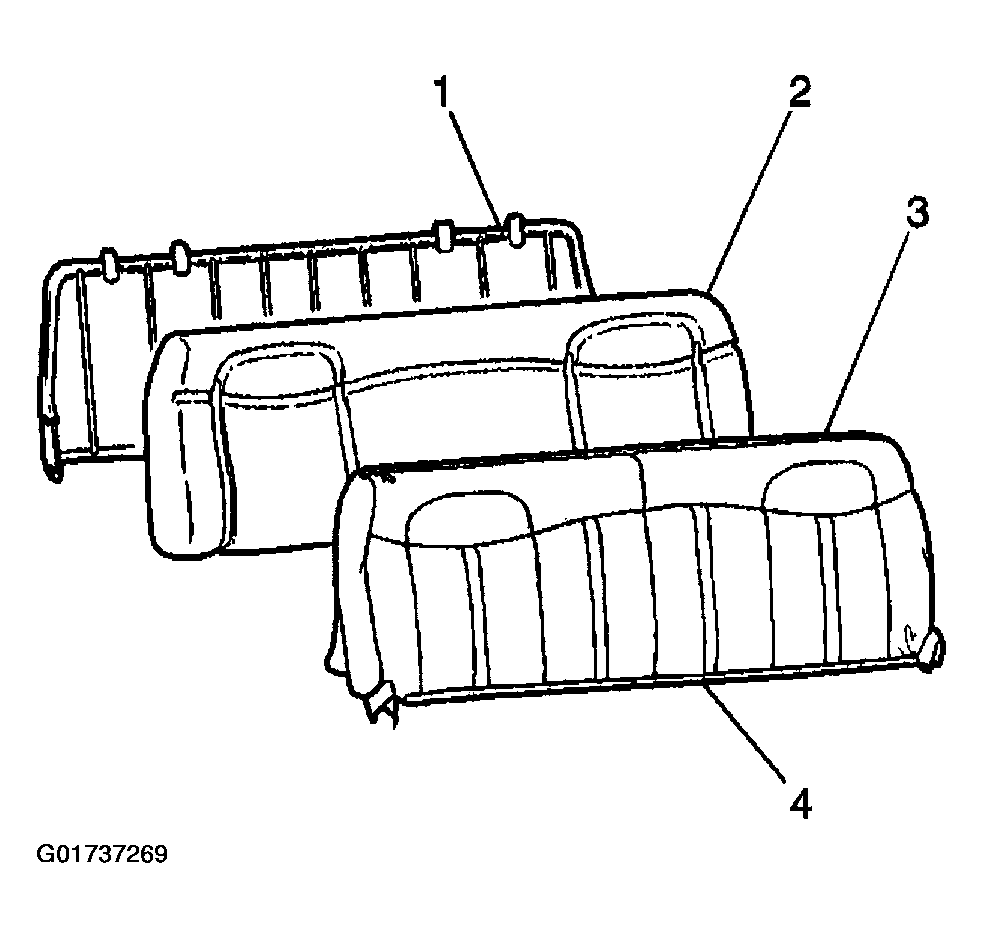

Fig 1: Removing Rear Seat Back Cover & Pad (All Except Luxury)
G01737269Courtesy of GENERAL MOTORS CORP.
