Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Working from side to side, carefully install the seatback cover (3) over the foam pad (2).
  2. Remove the cardboard from between the seatback cover and the foam pad.
  3. Engage the hook and loop strips that retain the seatback cover to the seatback foam pad.
  4. Secure the bottom edge of the seatback cover.
  5. Install the armrest to the seatback. Refer to Armrest Replacement - Rear Seat (All Except Luxury)  or Armrest Replacement - Rear Seat (Luxury Y91)  .

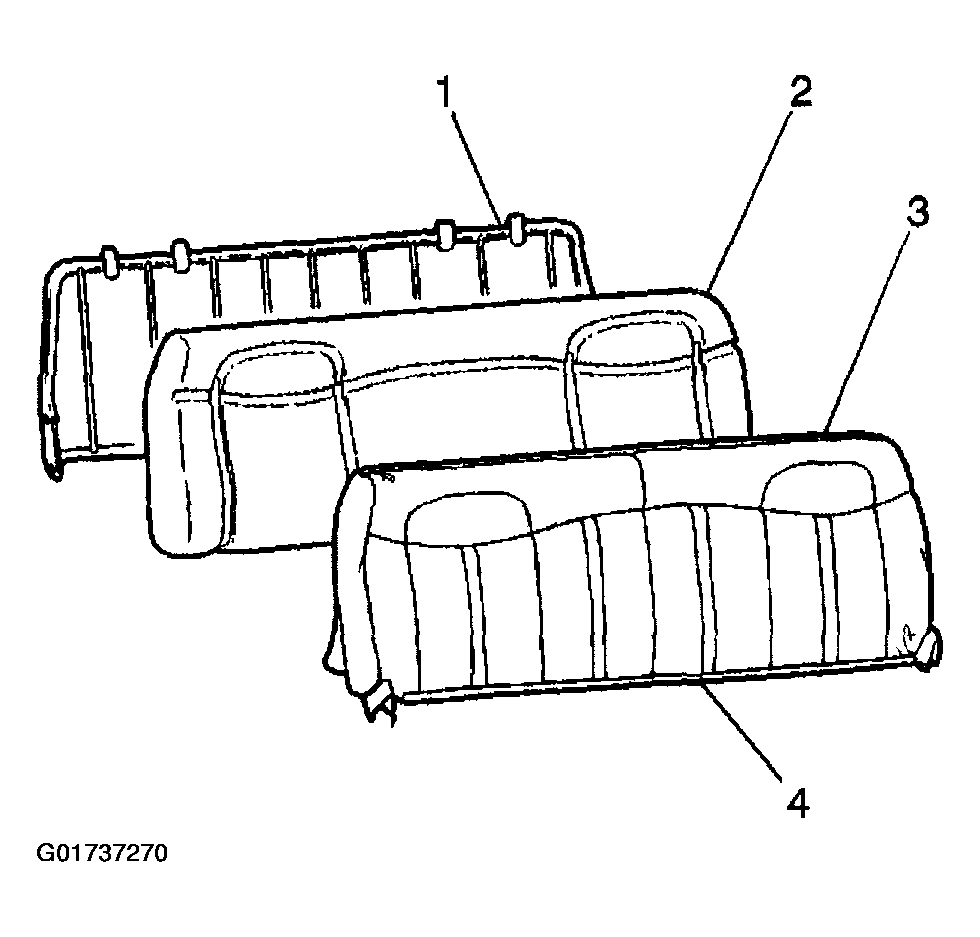

Fig 1: Installing Rear Seat Back Cover & Pad (All Except Luxury)
G01737270Courtesy of GENERAL MOTORS CORP.
