Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bucket seat from the vehicle. Refer to Seat Replacement - Bucket (All Except Luxury)  or Seat Replacement - Bucket (Luxury Y91)  .
  2. Remove the headrest. Refer to Head Restraint Replacement (Luxury (Y91)) .
  3. Remove the armrests. Refer to Armrest Replacement - Front Seat (All Except Luxury)  or Armrest Replacement - Front Seat (Luxury Y91)  or Armrest Replacement - Rear Seat (All Except Luxury)  or Armrest Replacement - Rear Seat (Luxury Y91)  .
  4. Disconnect the hook-and-loop fasteners that retain the seat cushion cover to the pad along the seat back break line.
  5. Remove the seat back cover and pad from the seat back.

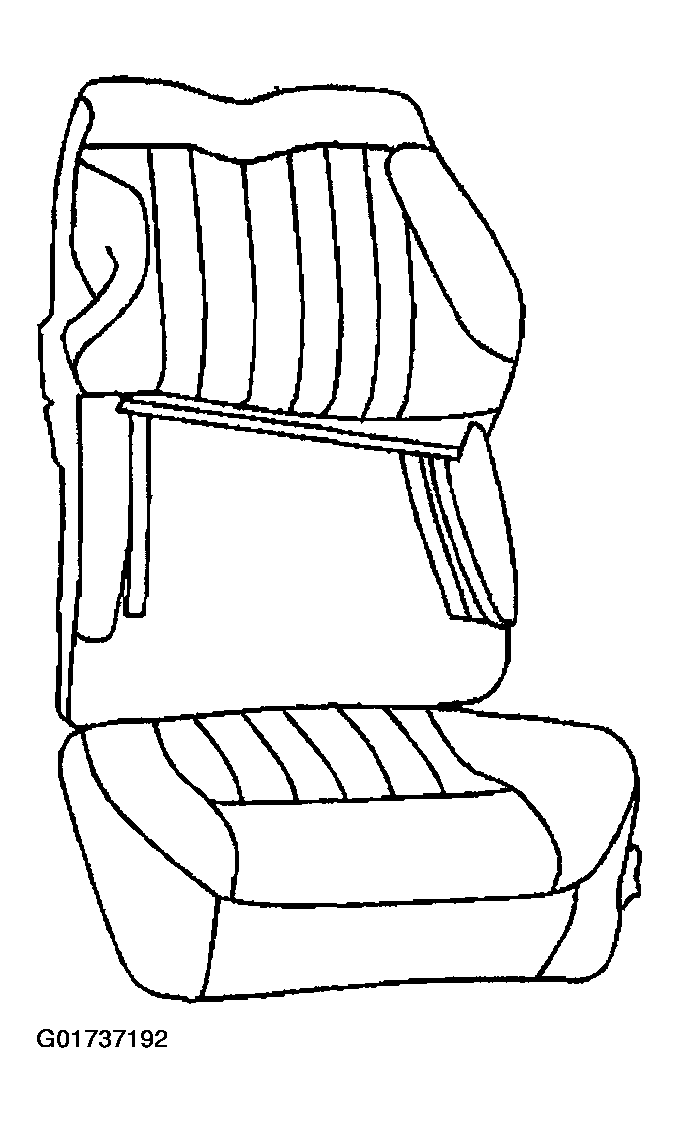

Fig 1: Removing Seat Back Cover & Pad From Seat Back
G01737192Courtesy of GENERAL MOTORS CORP.
