Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Working from side to side, carefully install the seatback cover (2) over the foam pad (1).
  2. Remove the cardboard from between the seatback cover and the foam pad.
  3. Install the armrest to the seatback. Refer to Armrest Replacement - Front Seat (All Except Luxury)  or Armrest Replacement - Front Seat (Luxury Y91)  .
  4. Engage the hook and loop strips retaining the seatback cover to the seatback foam pad.
  5. Secure the bottom edge of the seatback cover.
  6. Install the assist handle if equipped. Refer to Assist Handle Replacement - Front Passenger Seat .

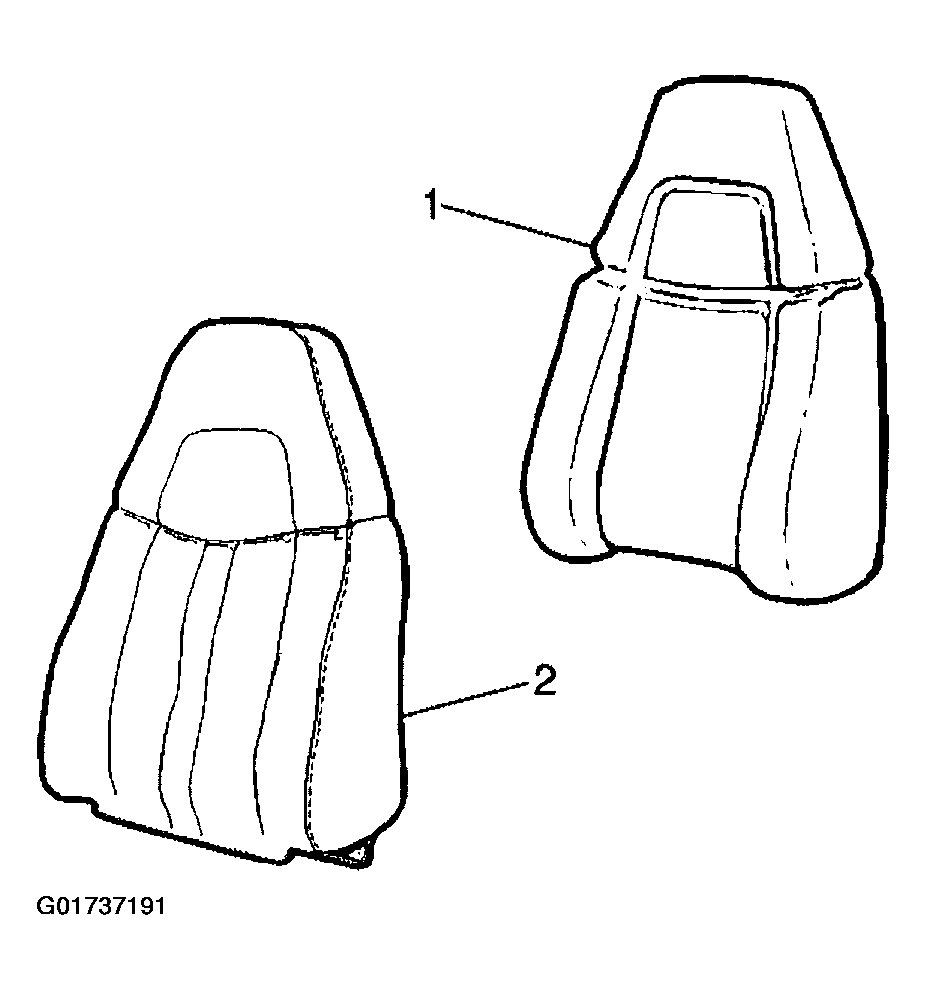

Fig 1: Installing Seatback Cover Over Seatback Foam Pad
G01737191Courtesy of GENERAL MOTORS CORP.
