Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the seat to the full UP position, if equipped with power seats.
  2. Disconnect the electrical connectors from the power seat motors, if equipped.

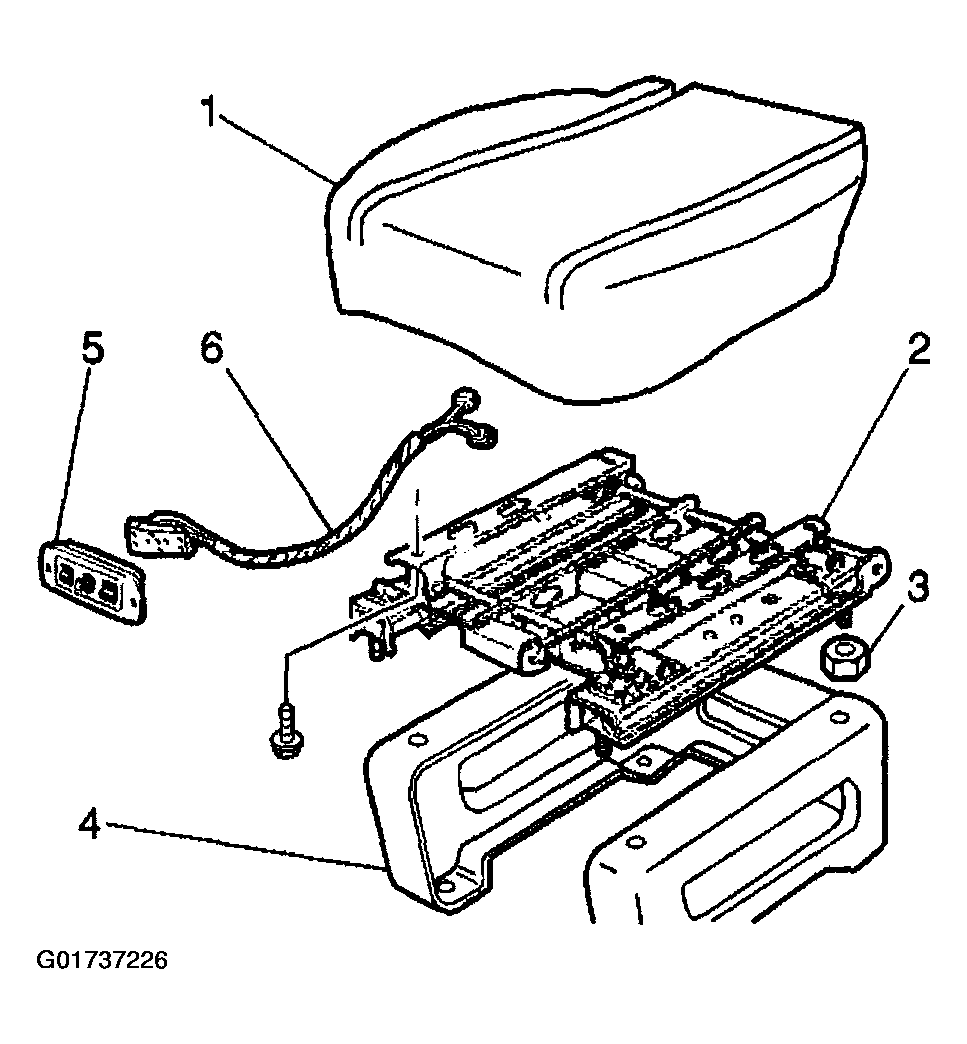

    Fig 1: Disconnecting Electrical Connectors From Power Seat Motors
    G01737226Courtesy of GENERAL MOTORS CORP.
  3. Remove the front lower speaker from the passenger seat, if equipped. Refer to AMPLIFIER AND/OR SPEAKER REPLACEMENT - FRONT SEAT (LUXURY Y91) .
  4. Remove the nuts (3) retaining the seat adjuster (2) to the seat riser (4).
  5. Remove the front seat and the seat adjuster from the seat riser.
  6. Remove the bolts retaining the seat adjuster from the seat.
  7. Remove the seat adjuster from the seat.

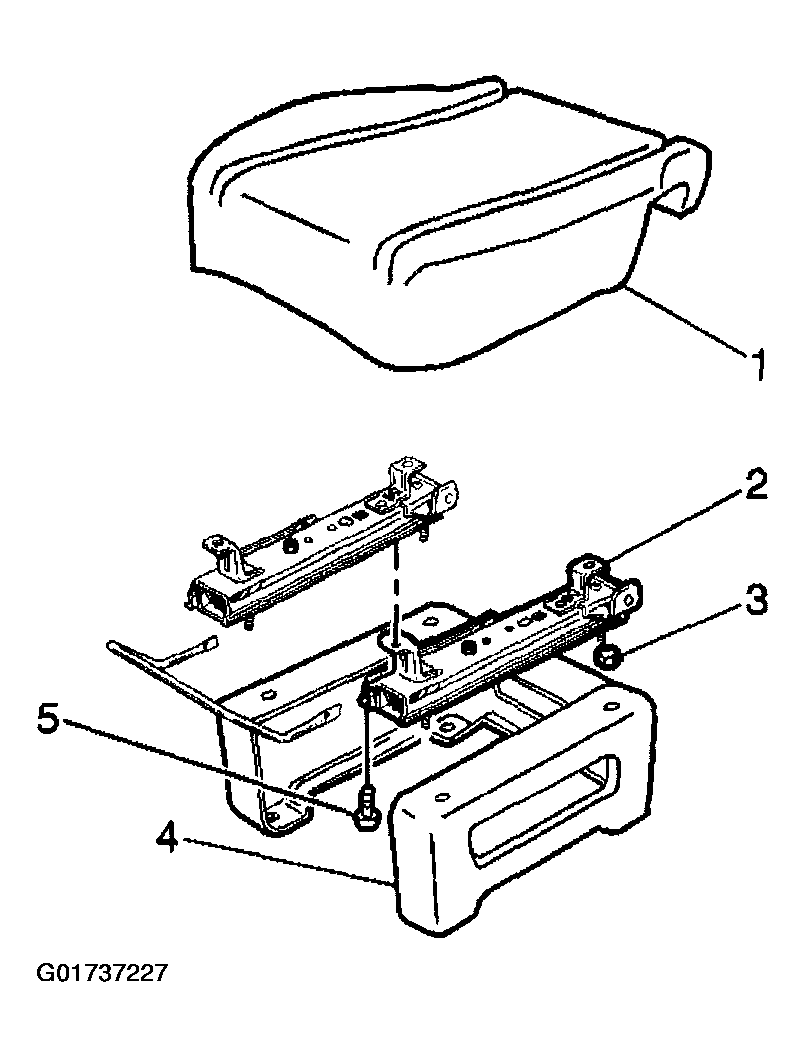

Fig 2: Removing Front Seat Adjuster Components
G01737227Courtesy of GENERAL MOTORS CORP.
