Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lumbar support cable and housing to the bucket seat cushion frame.

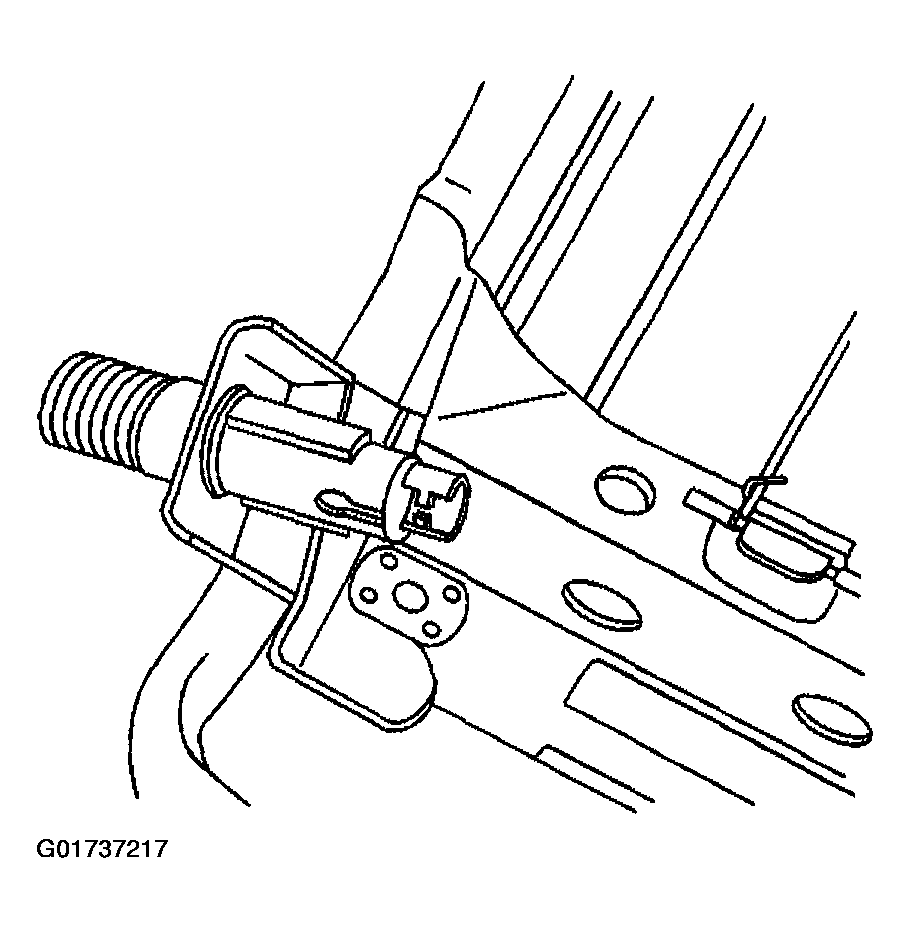

    Fig 1: Installing Lumbar Support Cable & Housing To Bucket Seat Cushion Frame
    G01737217Courtesy of GENERAL MOTORS CORP.
  2. Install the lumbar support cable to the side of the bucket seat cushion frame.
  3. Install the lumbar support cable clip.
  4. Install the bucket seat cushion cover and pad. Refer to Seat Cushion Cover Replacement - Front (All Except Luxury)  or Seat Cushion Cover Replacement - Front (Luxury Y91)  .

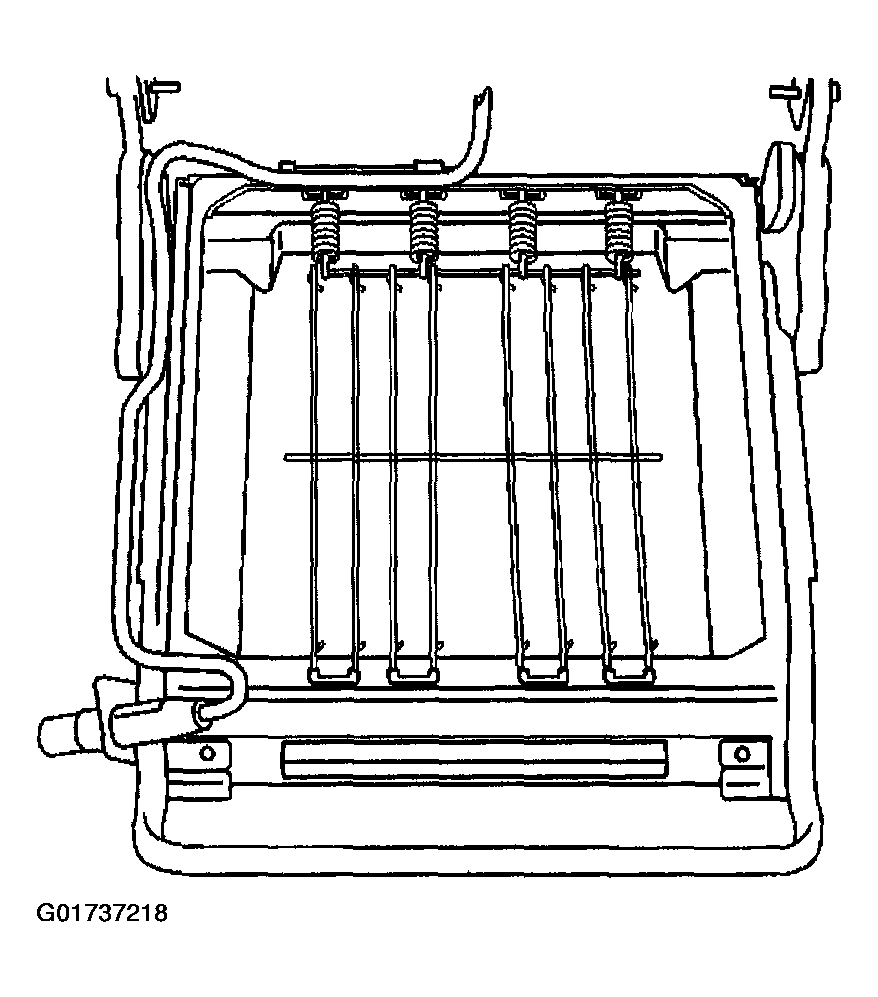

    Fig 2: Installing Lumbar Support Cable & Clip
    G01737218Courtesy of GENERAL MOTORS CORP.
  5. Install the lumbar plate to the seat back frame.
    Fig 3: Installing Lumbar Plate To Seat Back Frame
    G01737219Courtesy of GENERAL MOTORS CORP.
  6. Snap the corners of the lumbar plate to the seat back frame.

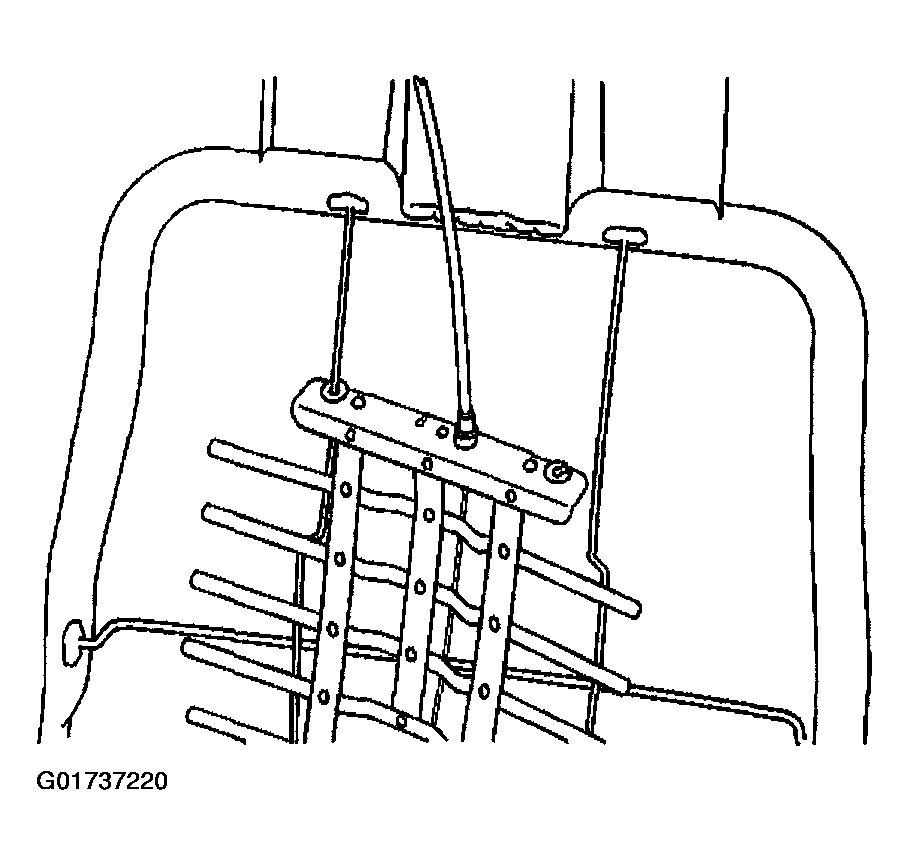

    Fig 4: Snapping Corners Of Lumbar Plate To Seat Back Frame
    G01737220Courtesy of GENERAL MOTORS CORP.
  7. Connect the lumbar plate cable (1) to the lumbar plate.
  8. Install the seat back cover and pad to the seat back frame. Refer to Seat Back Cover and Pad Replacement - Front (All Except Luxury)  or Seat Back Cover and Pad Replacement - Front (Luxury Y91)  .
  9. Install the bucket seat in the vehicle. Refer to Seat Replacement - Bucket (All Except Luxury)  or Seat Replacement - Bucket (Luxury Y91)  .

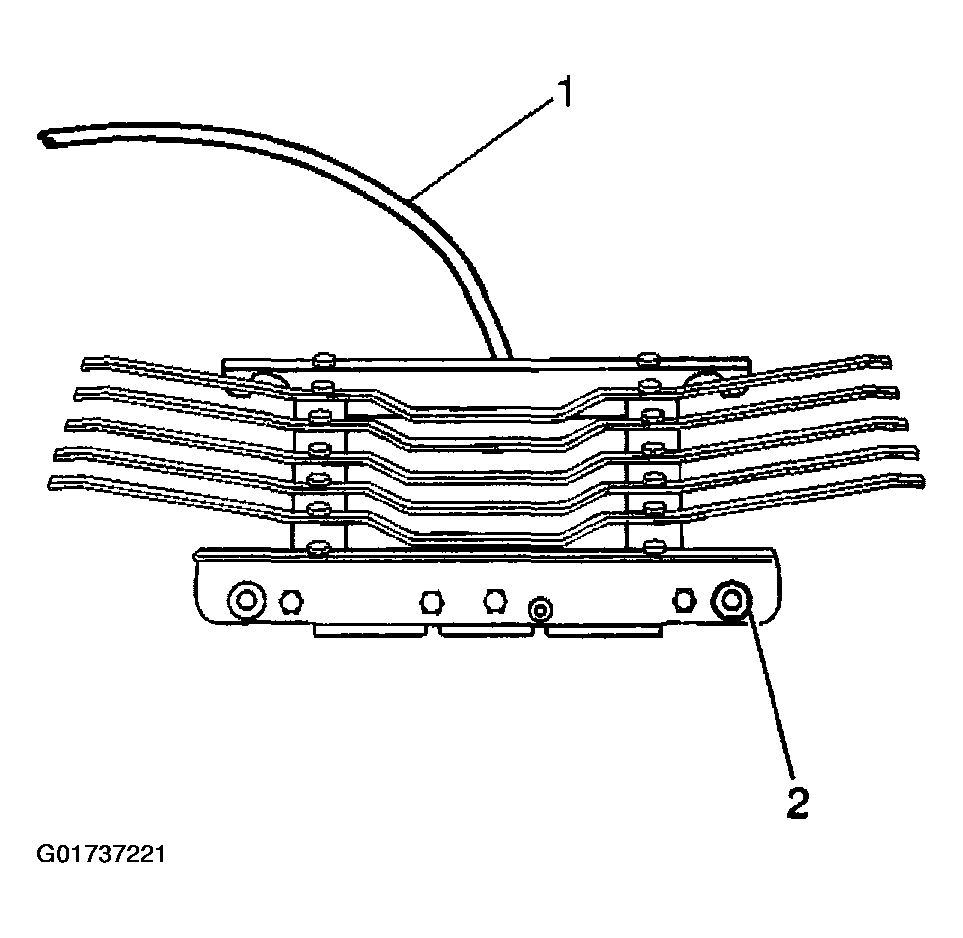

Fig 5: Connecting Lumbar Plate Cable
G01737221Courtesy of GENERAL MOTORS CORP.
