Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headrest to the seat back.
  2. Push down on the headrest.
  3. While continuing to press down on the headrest, depress the locking tab on the other side of the headrest bushing.
  4. The locking tabs should click into place.

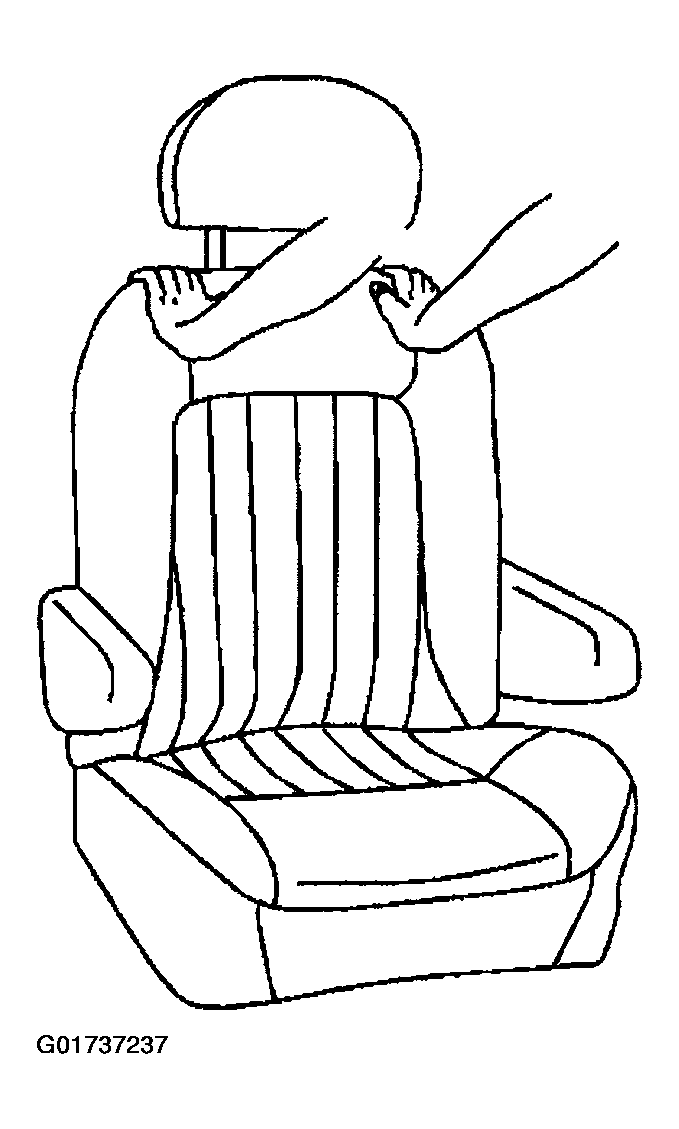

Fig 1: Installing Head Restraint - Luxury (Y91)
G01737237Courtesy of GENERAL MOTORS CORP.
