Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retaining clip (1) to the seatback (2).
  2. Ensure that the retaining clip is fully seated.
  3. Install the armrest (3) to the seatback.
  4. Press on the armrest in order to engage the armrest with the retaining clip in the seatback.
  5. Secure the bottom edge of the seatback cover. Refer to Seat Back Cover and Pad Replacement - Front (All Except Luxury)  or Seat Back Cover and Pad Replacement - Front (Luxury Y91)  .

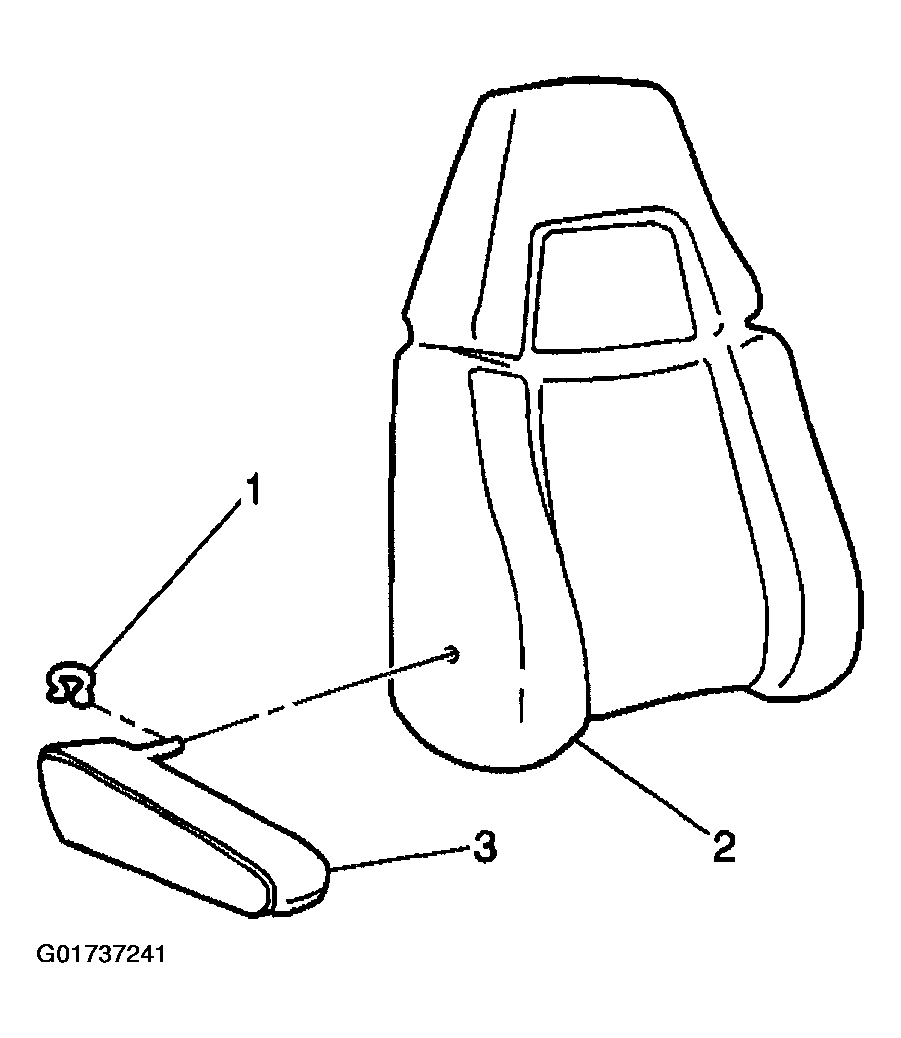

Fig 1: Installing Retaining Clip & Armrest To Seatback
G01737241Courtesy of GENERAL MOTORS CORP.
