Rear Seats Description

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

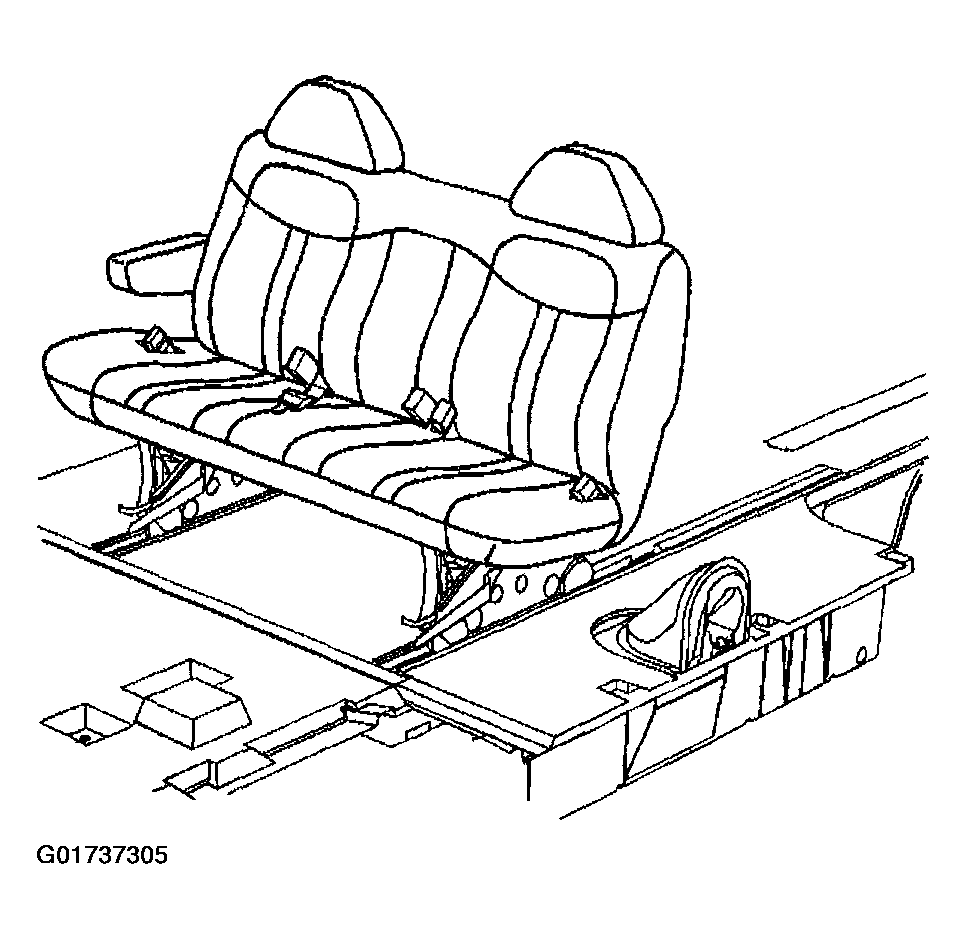

Fig 1: Seat Arrangement 5 Passenger (ZP5)

Courtesy of GENERAL MOTORS CORP.

The rear passenger seats fasten to the rear seat floor rails.

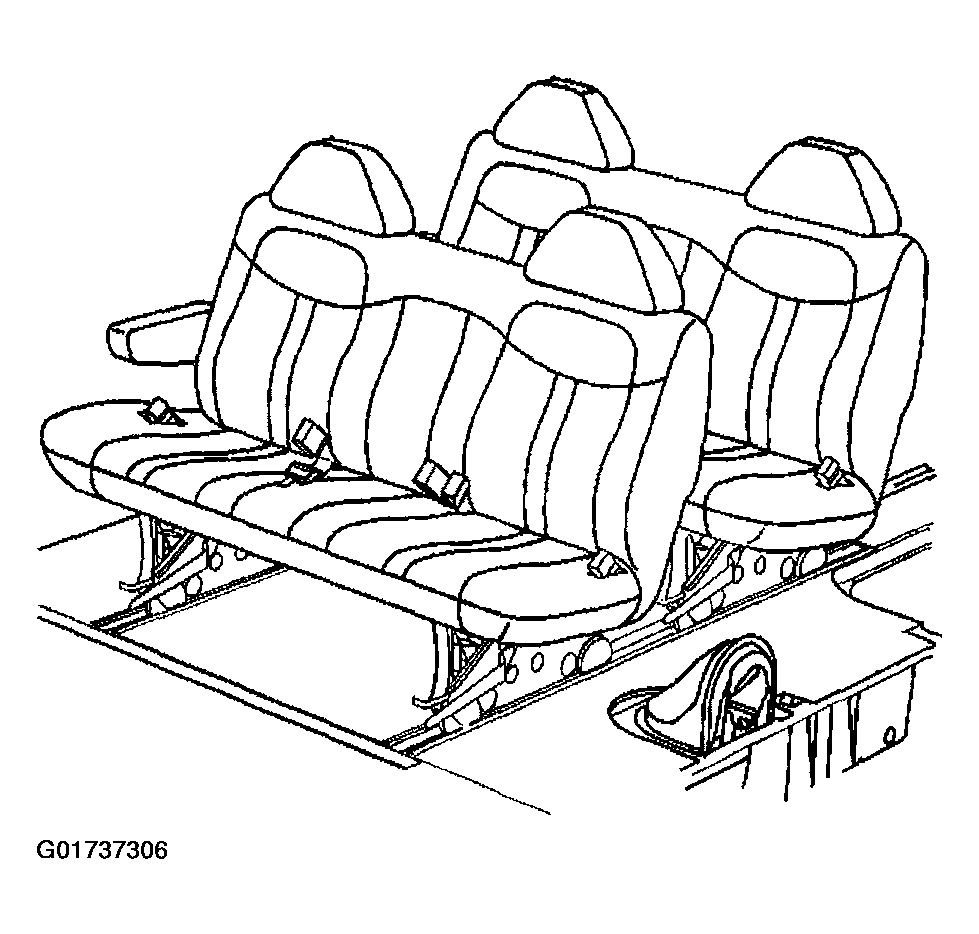

Fig 2: Seat Arrangement 8 Passenger (ZP8)

Courtesy of GENERAL MOTORS CORP.

Use a hook at the front of the seat riser in order to engage the seats with a pin in the floor rail and a locking pin at the rear of the seat riser.

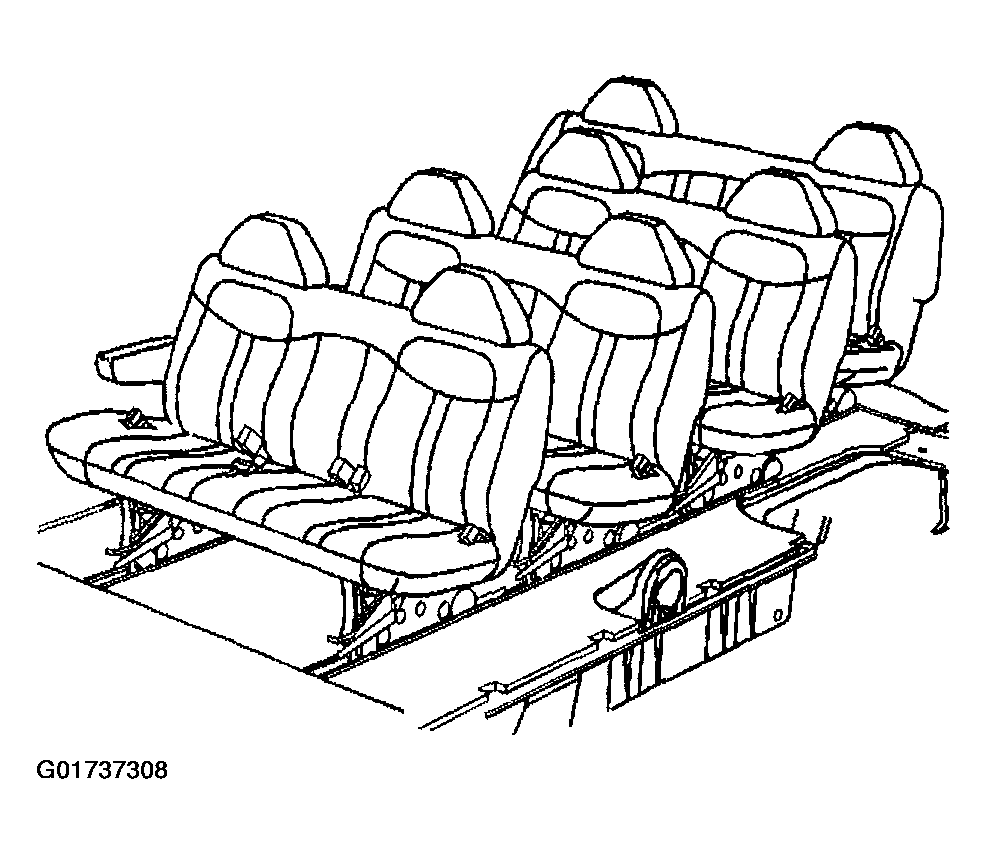

Fig 3: Seat Arrangement 12 Passenger (ZX5)

Courtesy of GENERAL MOTORS CORP.

The seat riser/locking pin retains the rear of the seat riser to the floor rail. Once you remove the locking pin, lift the seats from the slots in the floor rails.

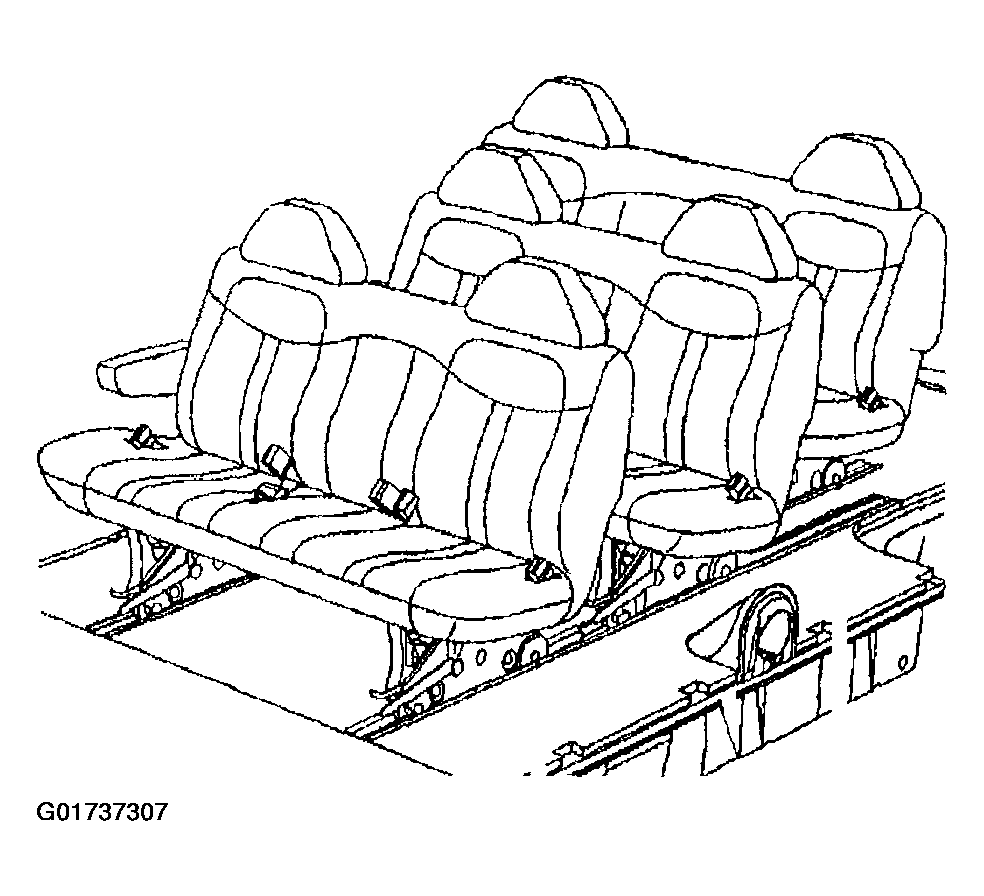

Fig 4: Seat Arrangement 15 Passenger (ZP3)

Courtesy of GENERAL MOTORS CORP.

The seats can then be removed from the vehicle.
