Park Brake Warning Lamp Switch: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

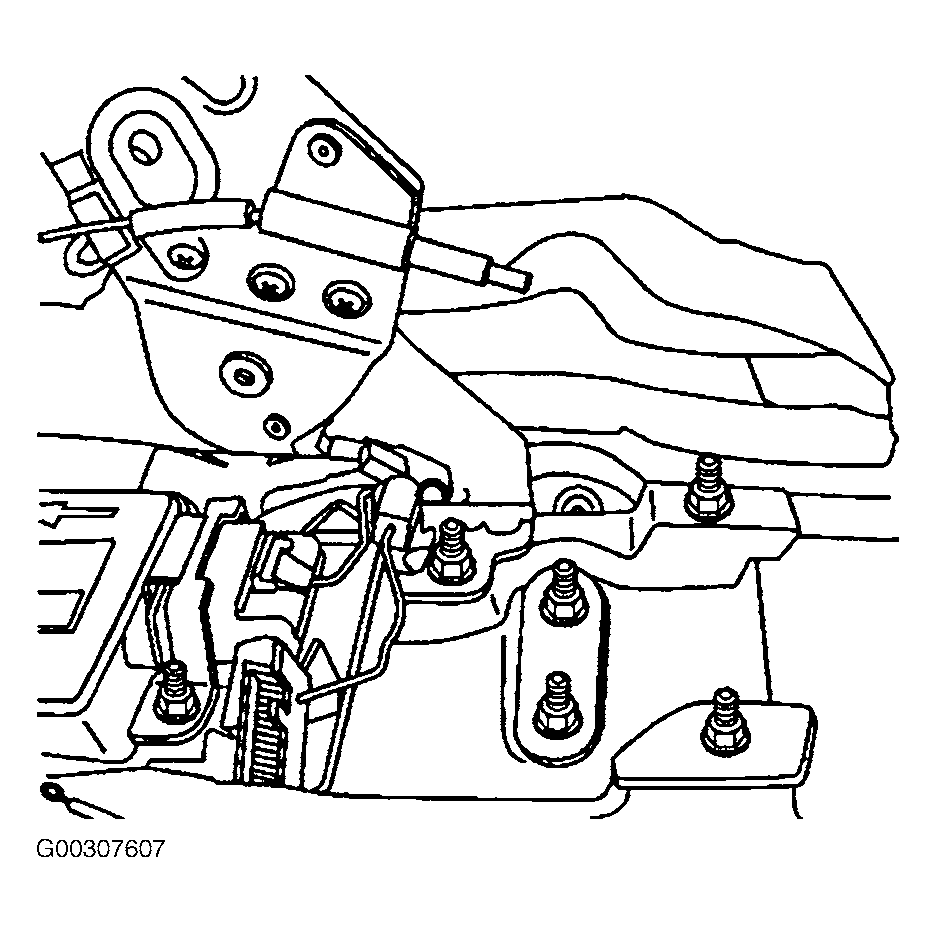

  1. Install the park brake warning lamp switch. See Figure .
  2. Install the park brake warning lamp switch retaining screw. Tighten the park brake warning lamp switch mounting bolt. See TORQUE SPECIFICATIONS  .
  3. Connect the electrical connector.
  4. Install the front passenger side seat.
