Park Brake Lever Assembly: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console. See Fig 1 .
  2. Disable the Park Brake Automatic Adjuster. See PARK BRAKE CABLE AUTOMATIC ADJUSTER  under ADJUSTMENT & INSPECTIONS.
  3. Raise and suitably support the vehicle.
  4. Disconnect the park brake cables from the equalizer. See Figure .
  5. Lower the vehicle.
  6. Disconnect the electrical connector from the park brake warning lamp switch.
  7. Remove the remaining park brake lever retaining nut. See Fig 2 .
  8. Remove the park brake lever assembly from the vehicle.

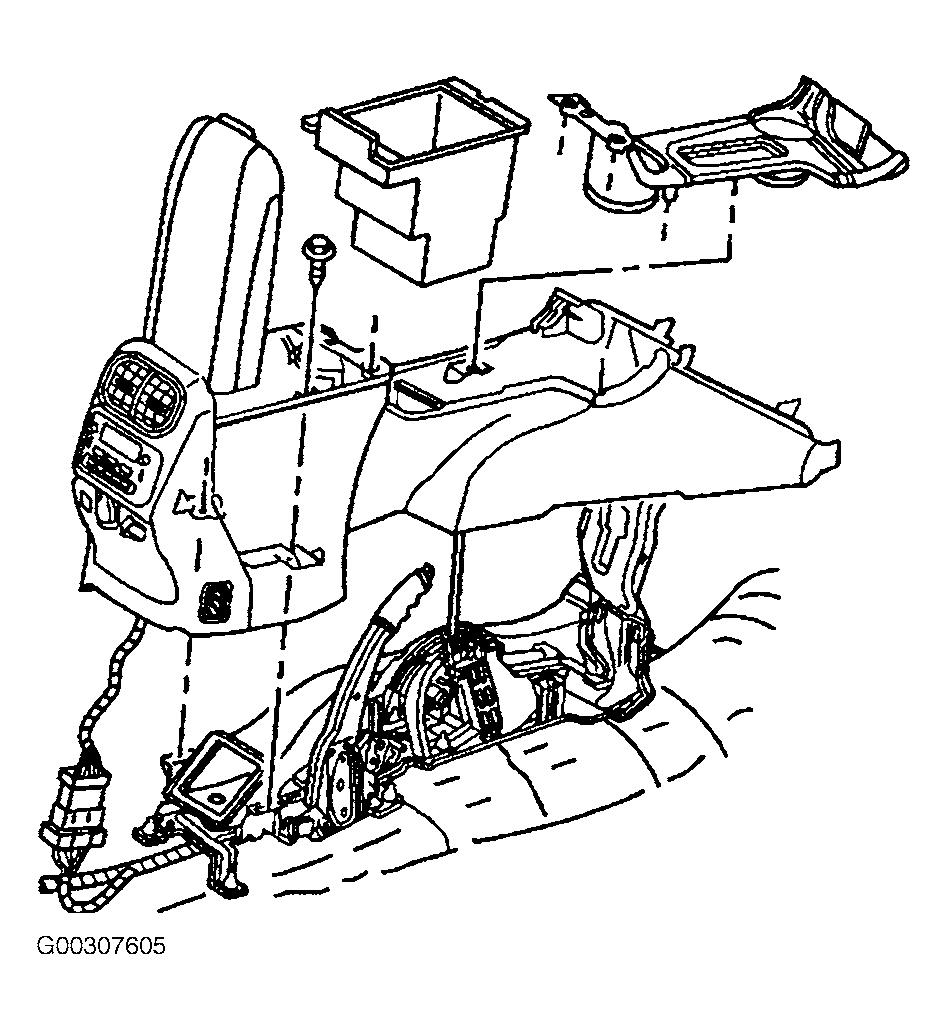

Fig 1: Removing/Installing Floor Console
G00307605Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Park Brake Lever Assembly
G00307606Courtesy of GENERAL MOTORS CORP.
