Front Brake Caliper Bracket: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide pin seals on the mounting bracket.
  2. If the guide pins and brake pad retaining clips are to be reused, use denatured alcohol to clean them.
  3. Dry the brake guide pins and brake pad retaining clips with non-lubricated, filtered air.
  4. Apply high temperature silicone brake lubricant to the brake caliper guide pins. See Figure . DO NOT apply the lubricant to the brake pad retaining clips.
  5. Install the brake caliper mounting bracket.
  6. Install the caliper mounting bracket bolts. Tighten the caliper mounting bracket bolts. SeeTORQUE SPECIFICATIONS  .
  7. Install the rear brake pad hardware to the brake caliper mounting bracket.
  8. Install the brake pads to the brake caliper mounting bracket.
  9. Install the brake caliper assembly. See FRONT BRAKE CALIPER  .
  10. Install the tire and wheel assembly. Lower the vehicle.
    11. CAUTION: Do not move the vehicle until a firm brake pedal is obtained. Failure to obtain a firm pedal before moving vehicle may result in personal injury.

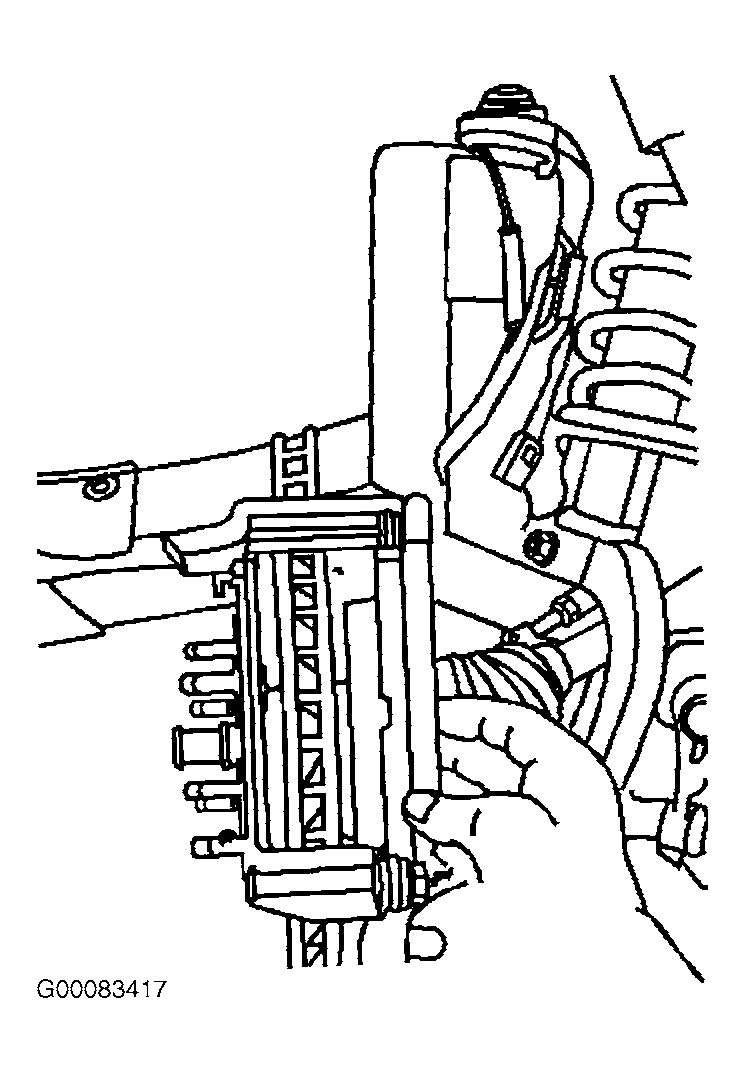

    Fig 1: Inboard Brake Pad Shown
    G00083417Courtesy of GENERAL MOTORS CORP.

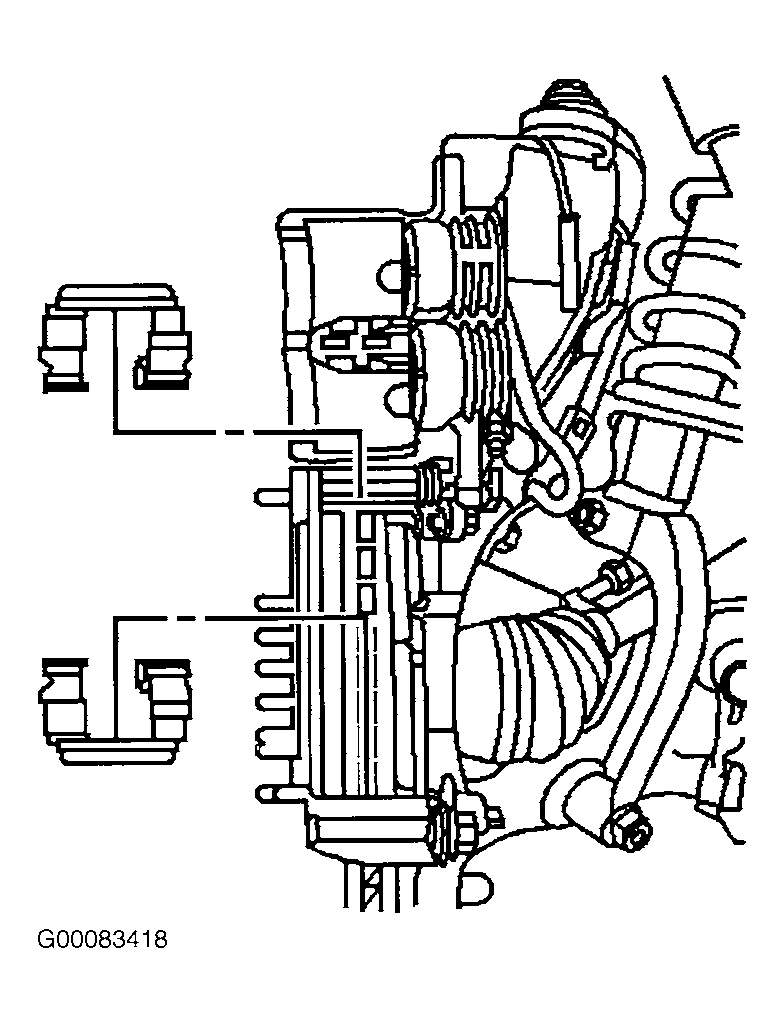

    Fig 2: Brake Pad Retaining Clips
    G00083418Courtesy of GENERAL MOTORS CORP.
    Fig 3: Caliper Mounting Bracket Retaining Bolts
    G00083419Courtesy of GENERAL MOTORS CORP.
  11. Pump the brake pedal slowly and firmly in order to seat the brake pads.
