Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
- Apply weather-strip adhesive into the channel on the rear door opening weather-strip. Use GM P/N 12345097, or Canadian P/N 10953479, or the equivalent.

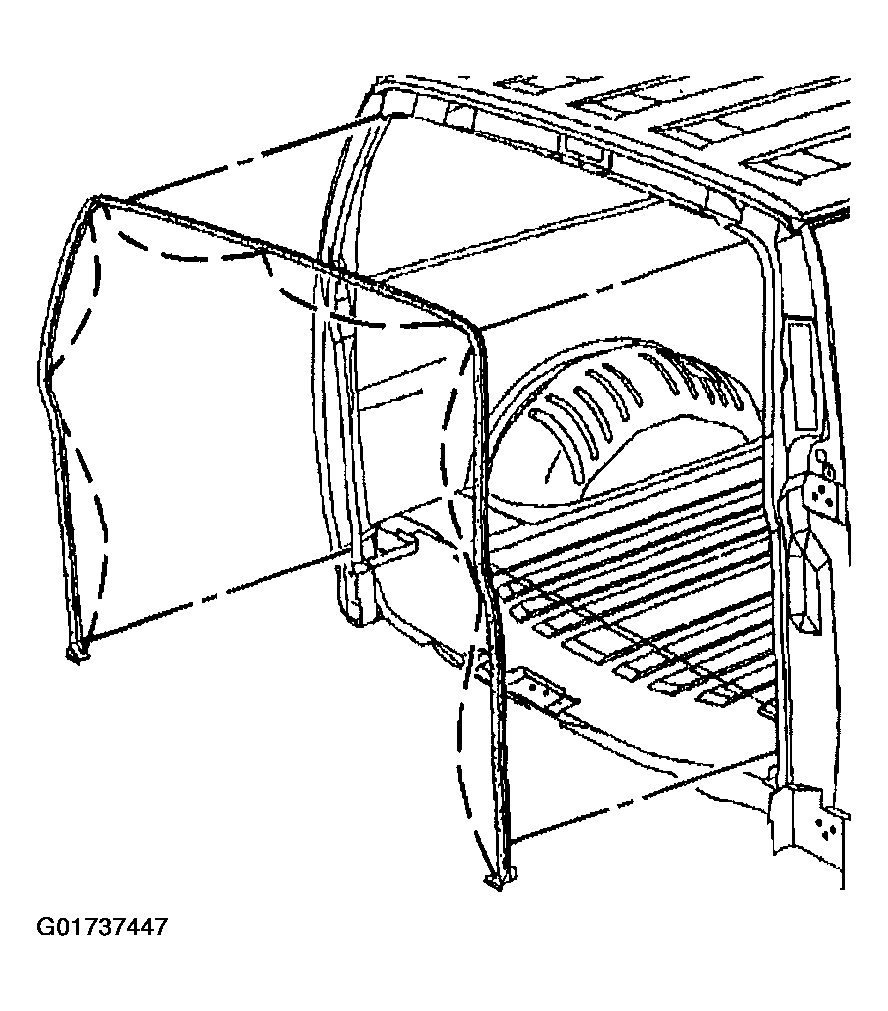

- Start at the corners and align the rear door opening weather-strip to the door opening pinch-weld flange.

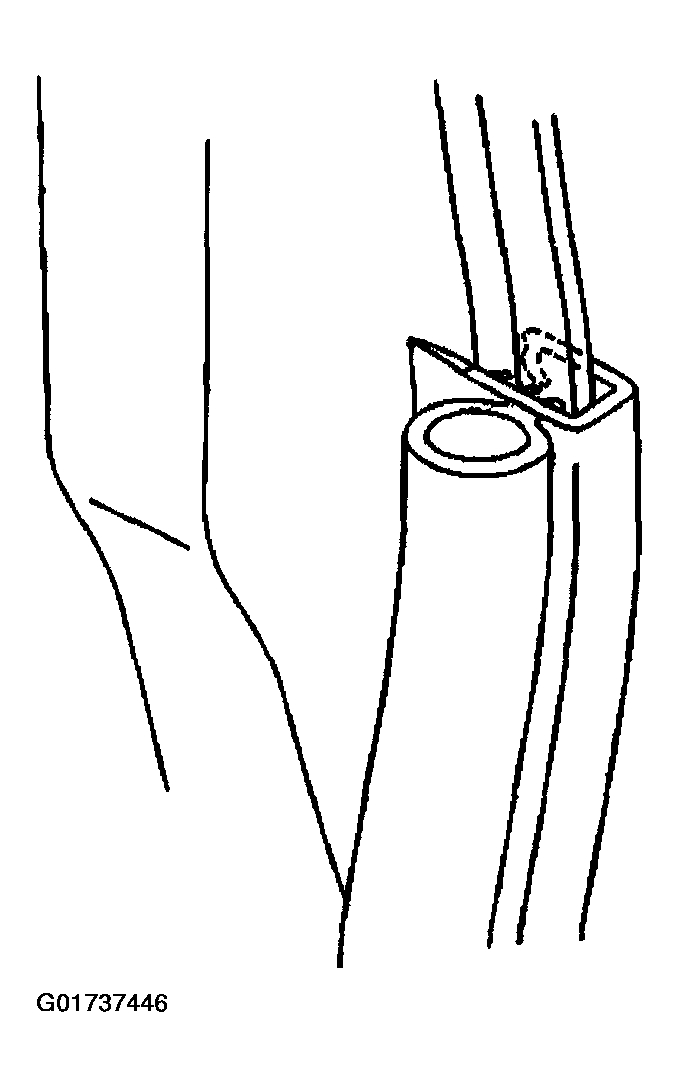

- Align the channel on the rear door opening weather-strip with the pinch-weld flange.
Important: When installing the rear door opening weather-strip, ensure that the corners have not pulled away from the body.

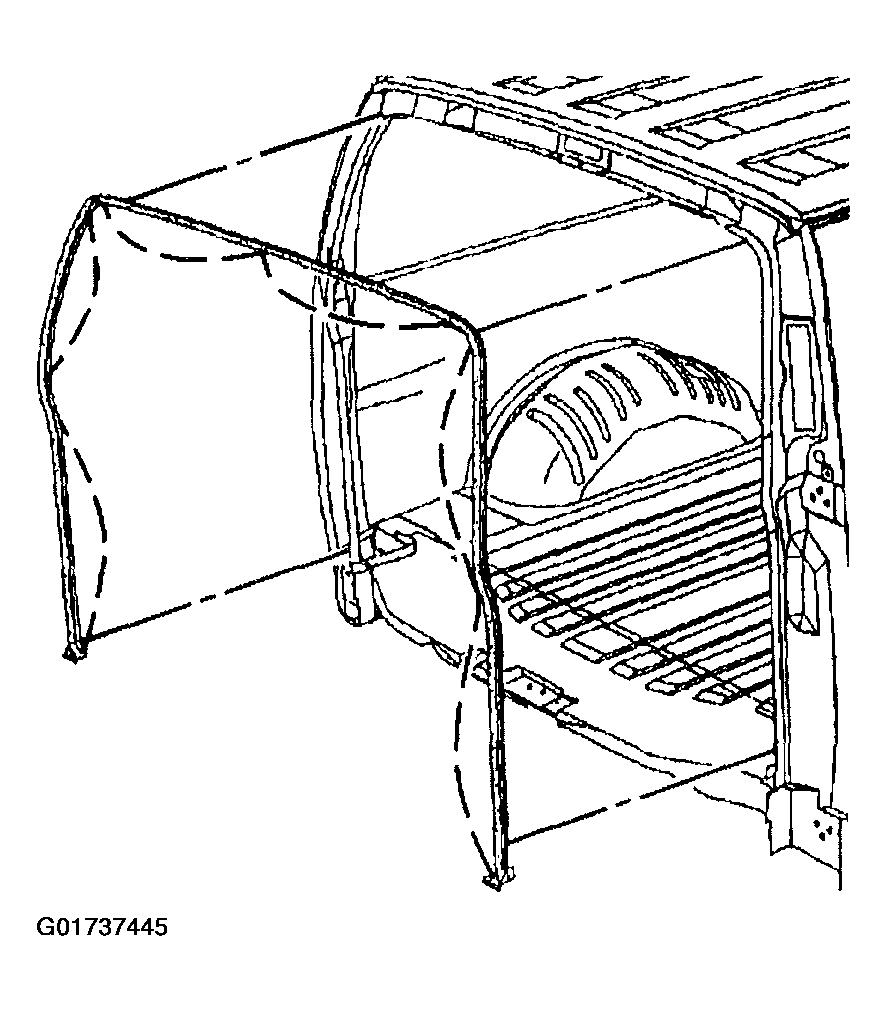

- Press the weather-strip into place. If you are reinstalling the original weather-strip, use GM weather-strip adhesive GM P/N 12345097, or Canadian P/N 10953479 at the bottom ends of the rear door opening weather-strip in order to retain the weather-strip to the body.
- Install the retainers in the ends of the rear door opening weather-strip into the holes in the floor panel.
- Install the rear door frame garnish molding. Refer to Garnish Molding Replacement - Rear Door Frame .
- Install the rear floor trim plate. Refer to Floor Trim Plate Replacement - Rear .
- Install the right rear corner trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT REAR CORNER .
- Install the driver side body side rear trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE REAR .
- Install the rear corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER .
