Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear door upper striker (2) to the door opening.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the bolts (3) in order to retain the rear door upper striker (3) to the door opening.

    Tighten

    Tighten the rear door upper striker retaining bolts to 10 N.m (89 lb in).

  3. Install the rear door opening frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR DOOR UPPER .

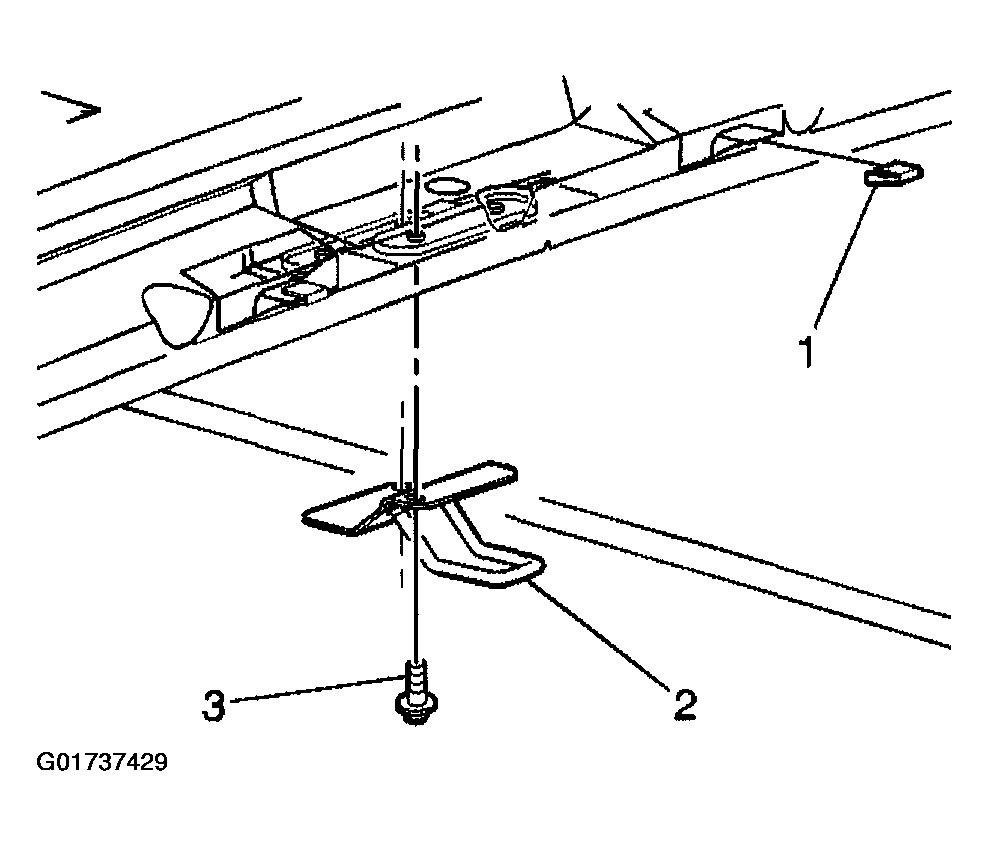

    Fig 1: Installing Upper Lock Striker
    G01737429Courtesy of GENERAL MOTORS CORP.
