Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR .
  2. Remove the outside door handle (1). Refer to Handle and License Pocket - Rear Door Outside .
  3. Remove the clip that retains the lock cylinder lever to the lock cylinder (3).
  4. Press the lock cylinder retainer.
  5. Remove the lock cylinder (3) from the handle.
  6. Remove the lock cylinder (3) from the vehicle.

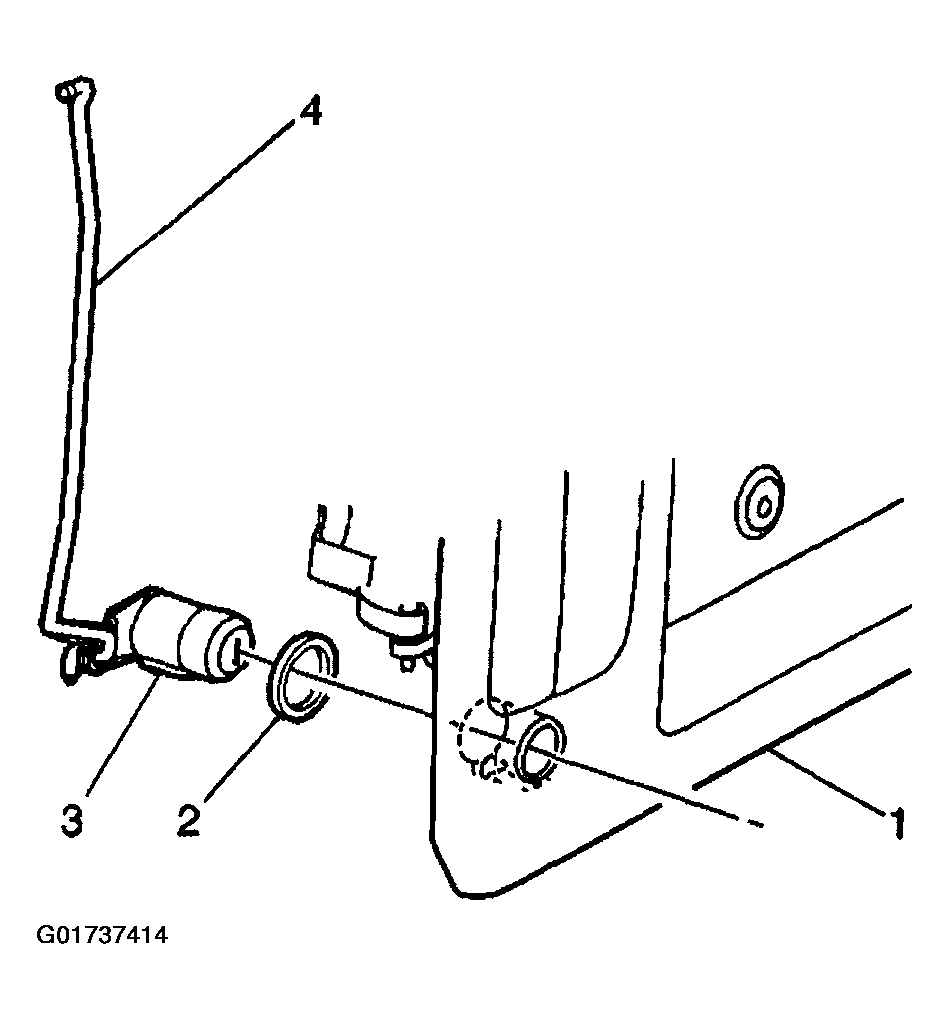

    Fig 1: Removing Lock Cylinder (Rear Door)
    G01737414Courtesy of GENERAL MOTORS CORP.
