Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock cylinder (3) to the vehicle.
  2. Press the lock cylinder (3) into the handle in order to engage the lock cylinder retainer.
  3. Install the clip in order to retain the lock cylinder lever to the lock cylinder (3).
  4. Install the outside door handle (1). Refer to Handle and License Pocket - Rear Door Outside .
  5. Install the right side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR .

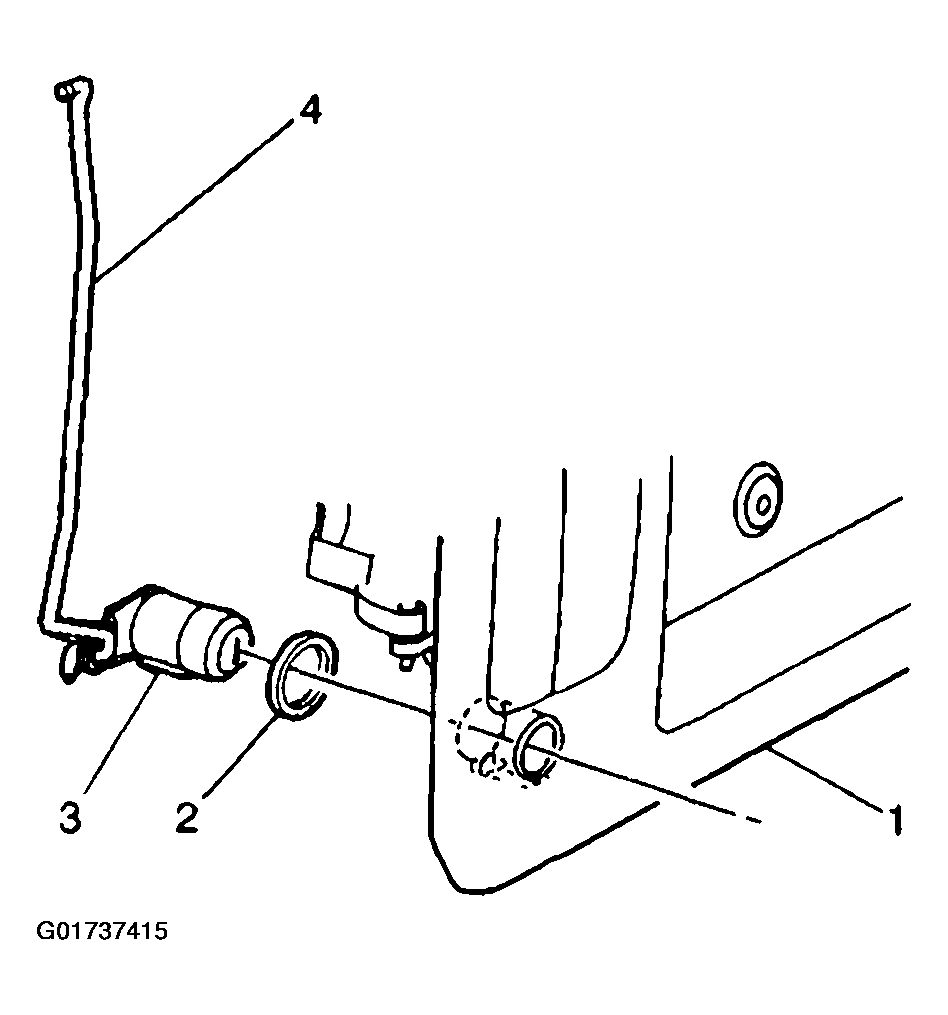

    Fig 1: Installing Lock Cylinder (Rear Door)
    G01737415Courtesy of GENERAL MOTORS CORP.
