Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the license pocket filler to the license pocket.
  2. Install the rivets, to retain the license pocket filler, using a rivet gun.
  3. Install the right side rear door outside handle and license pocket. Refer to Handle and License Pocket - Rear Door Outside .

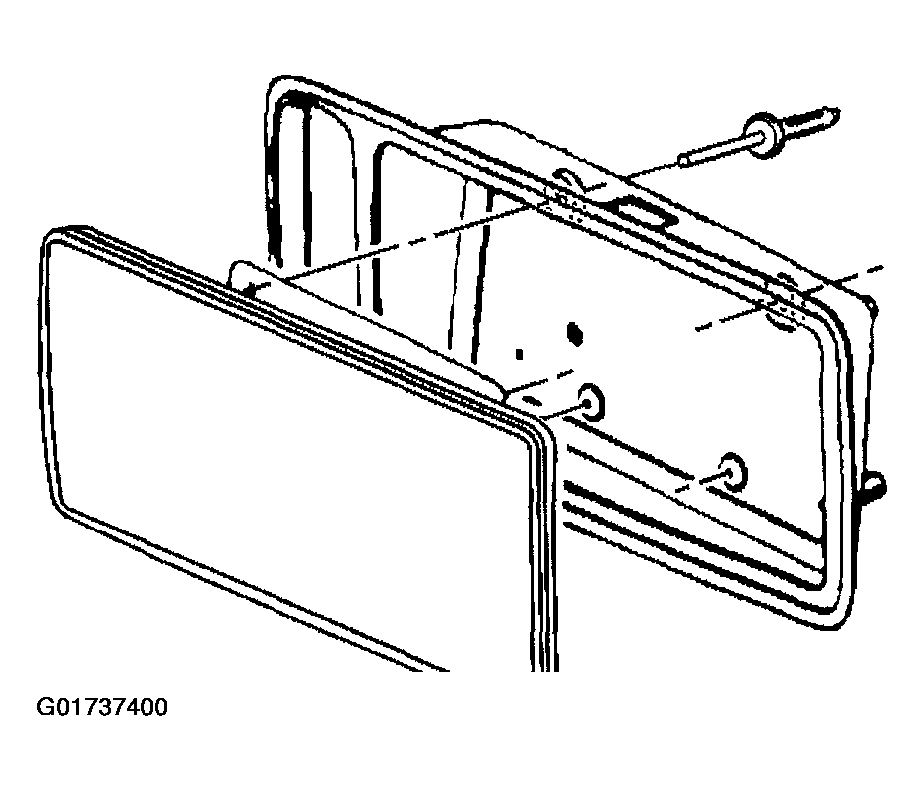

    Fig 1: Installing License Plate Pocket
    G01737400Courtesy of GENERAL MOTORS CORP.
