Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR .
  2. Remove the lock rods from the left side rear door latch handle (4).
  3. Remove the nuts (2) that retain the left side rear door latch handle (4) to the left side rear door.
  4. Remove the left side rear door latch handle (4) from the left side rear door.

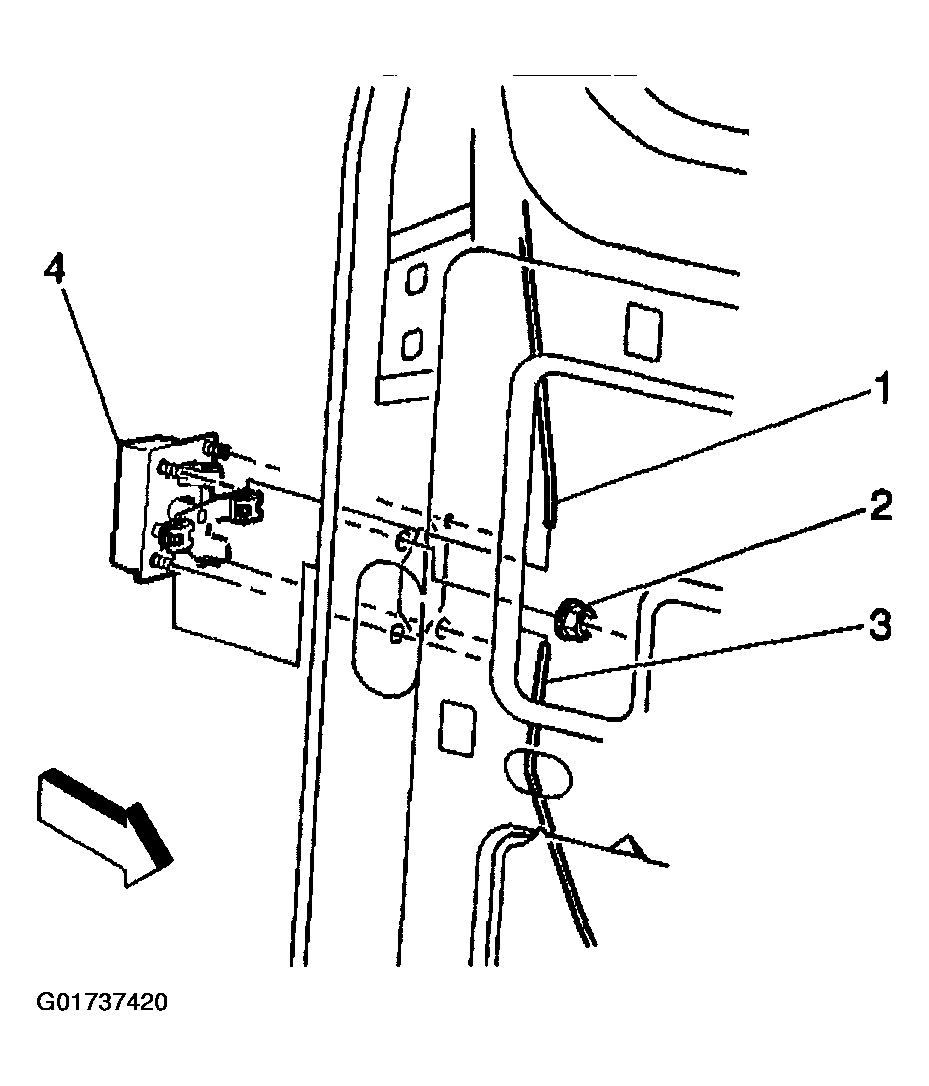

    Fig 1: Removing Left Rear Door Latch Control Handle
    G01737420Courtesy of GENERAL MOTORS CORP.
