Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws (1) that retain the fuel filler door to the body.
  2. Remove the fuel filler door (2) from the body.

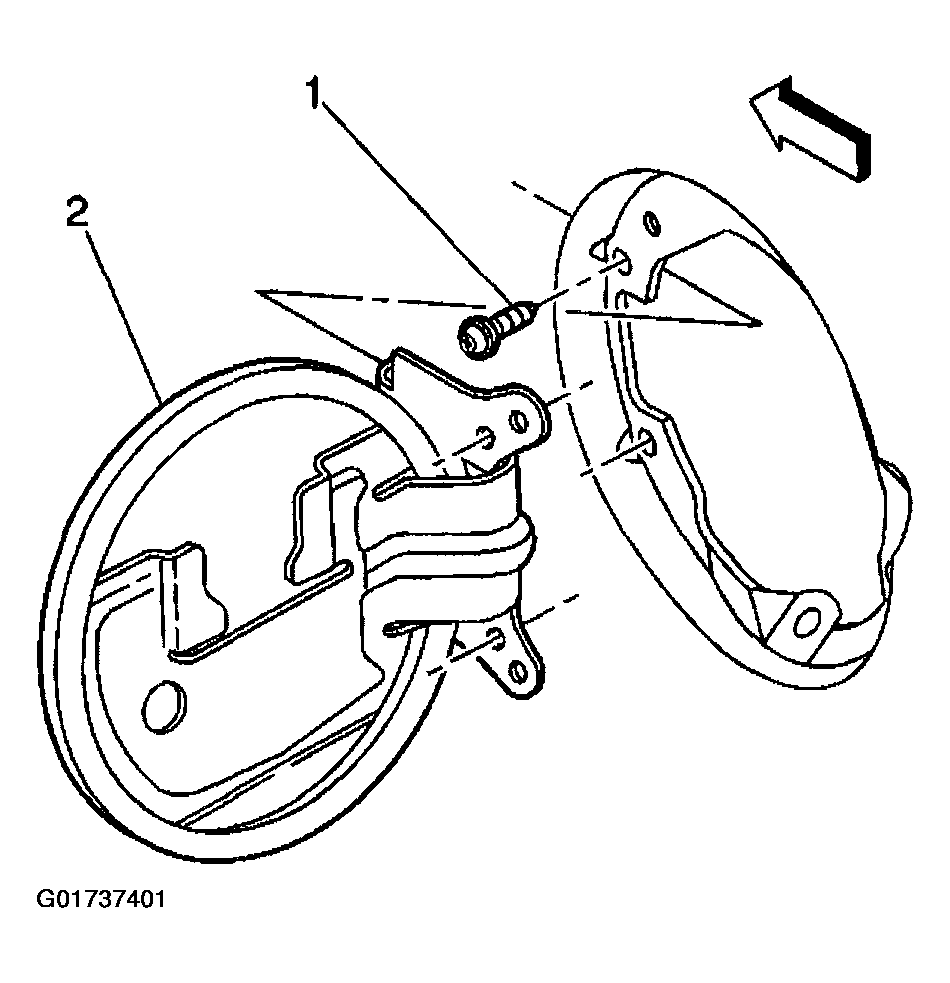

    Fig 1: Removing Fuel Filler Door
    G01737401Courtesy of GENERAL MOTORS CORP.
