Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp and gently pull up on the rear floor trim plate in order to release the retaining clips.
  2. Remove the rear floor trim plate from the vehicle.
  3. Inspect the rear floor trim plate for broken or missing retaining clips, and replace when needed.

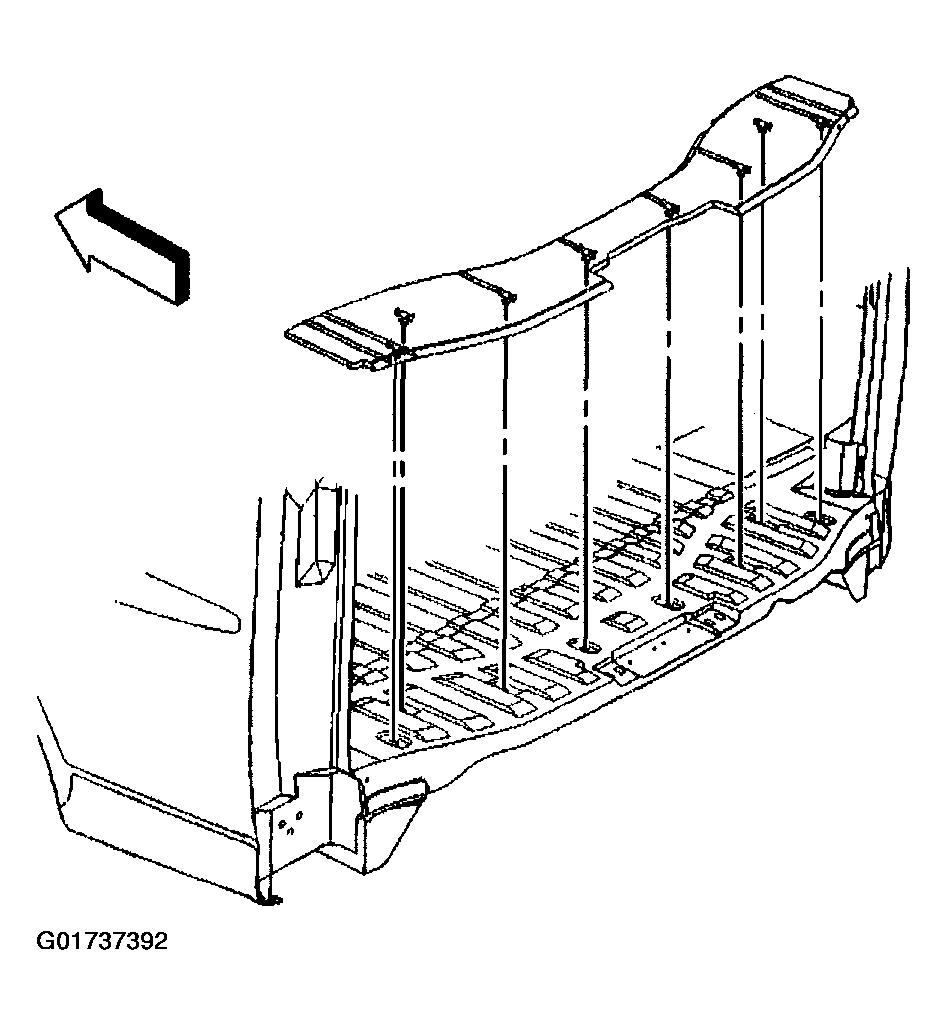

    Fig 1: Removing Rear Floor Trim Plate
    G01737392Courtesy of GENERAL MOTORS CORP.
