Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Completely open the rear door.
  2. Remove the bolts that retain the door extension to the door.
  3. Partially close the rear door.
  4. Grasp the extension.
  5. Pull the extension in order to disengage the extension from the door.
  6. Remove the rear door extension panel from the vehicle.

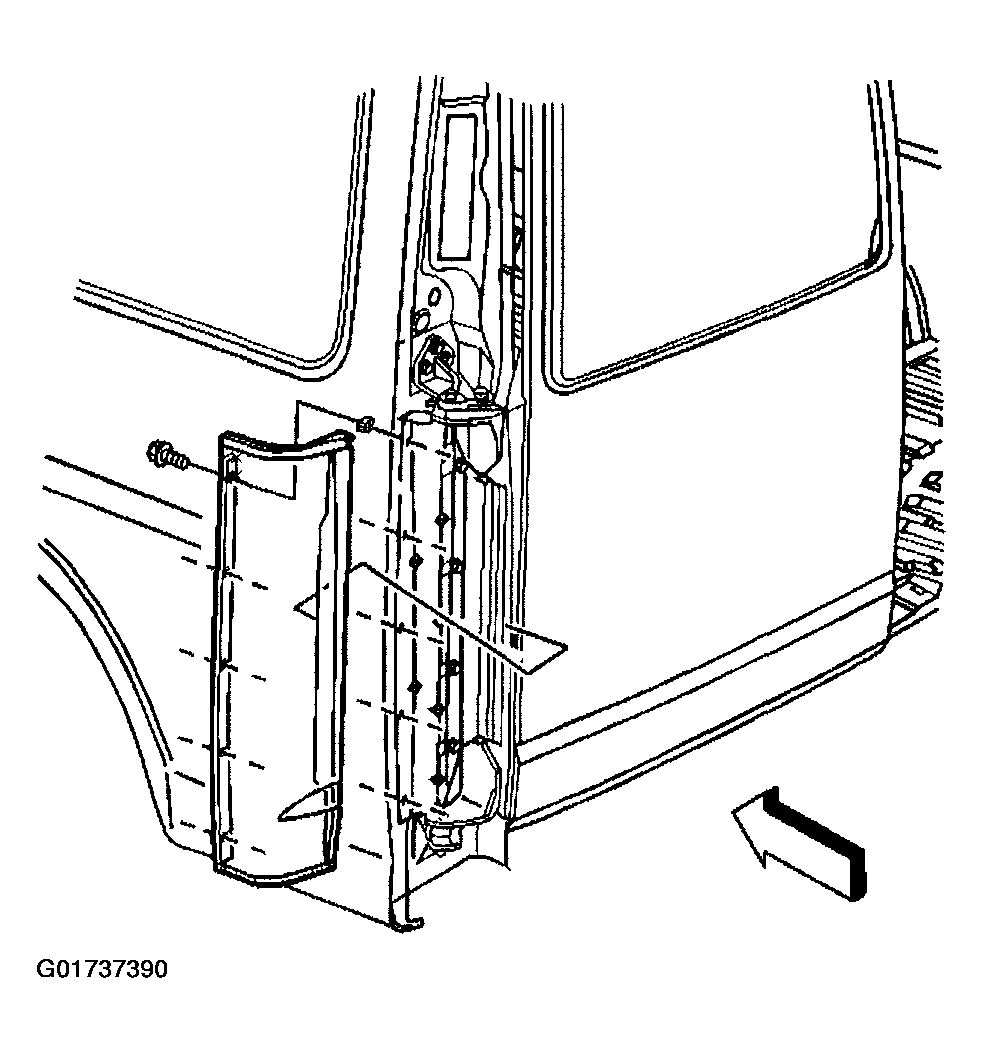

    Fig 1: Removing Rear Door Extension Panel
    G01737390Courtesy of GENERAL MOTORS CORP.
