Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp and gently pull the windshield garnish molding in order to release the retaining clips.
  2. Remove the windshield garnish molding form the vehicle.
  3. Inspect the windshield garnish molding for broken or missing retaining clips.

Replace the windshield garnish molding or retaining clips as needed.

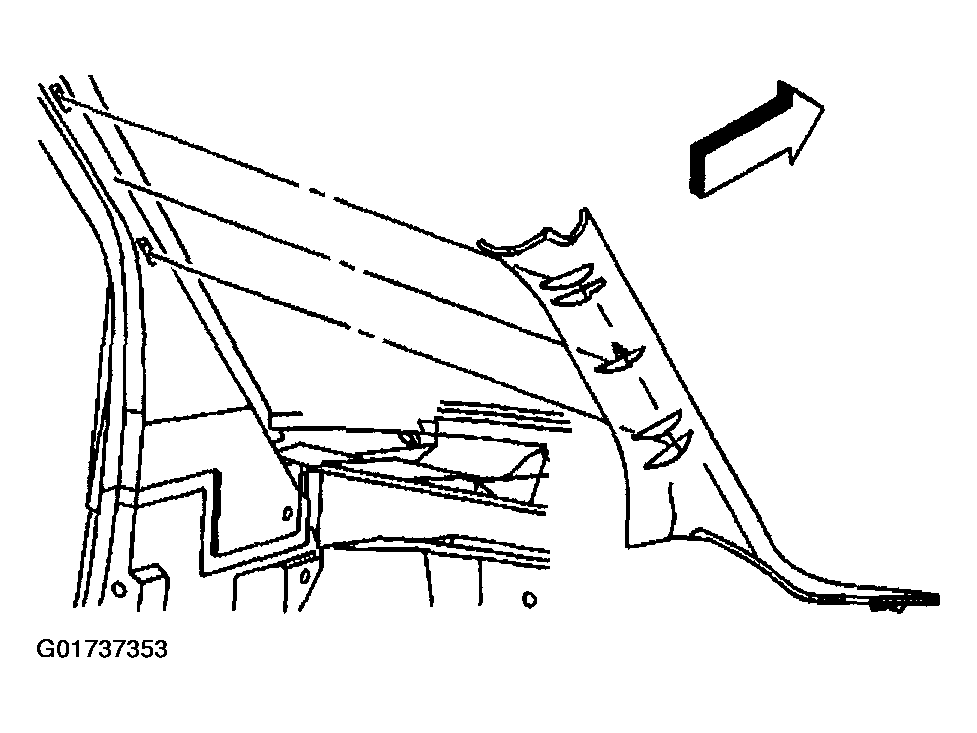

Fig 1: Removing Windshield Garnish Molding (A Pillar)
G01737353Courtesy of GENERAL MOTORS CORP.
