Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pull the hinge pillar trim panel in order to release the retaining clips.
  2. Remove the hinge pillar trim from the vehicle.
  3. Inspect the hinge pillar trim panel for broken or missing retaining clips. Replace the retaining clips as needed.

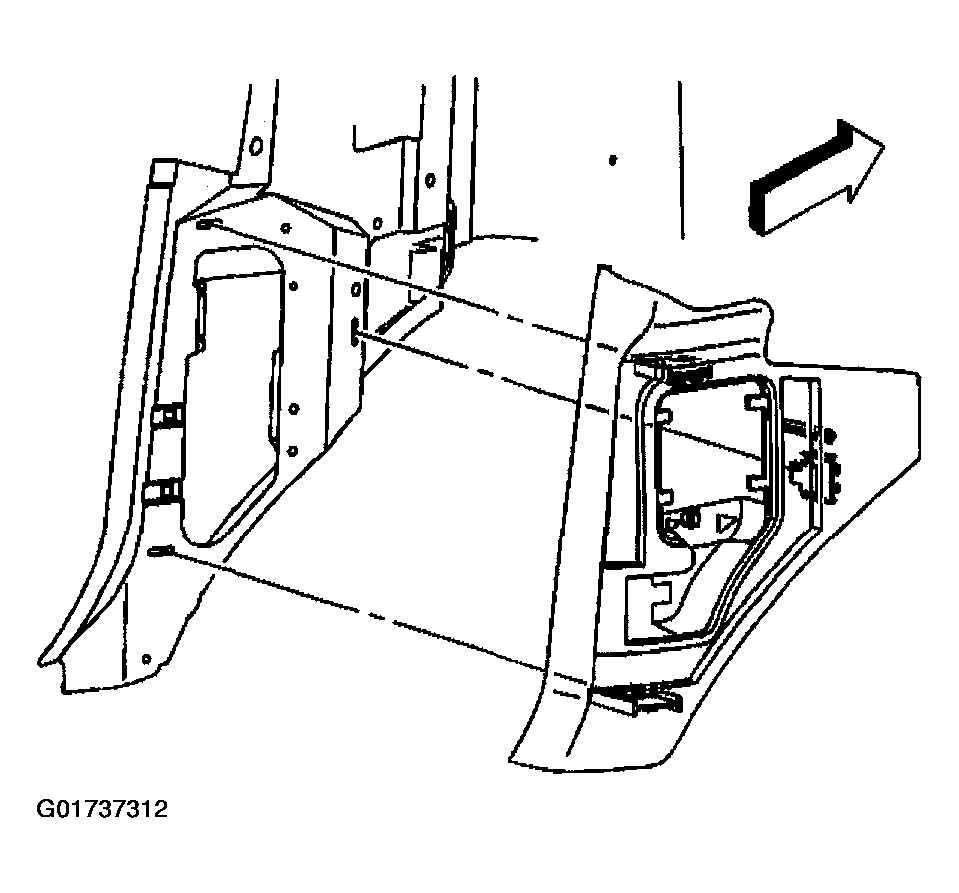

Fig 1: Removing Lower Hinge Pillar Trim
G01737312Courtesy of GENERAL MOTORS CORP.
