Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hinge pillar trim panel to the vehicle.
  2. Align the locator pins. Press on the hinge pillar trim panel in order to engage the retaining clips.

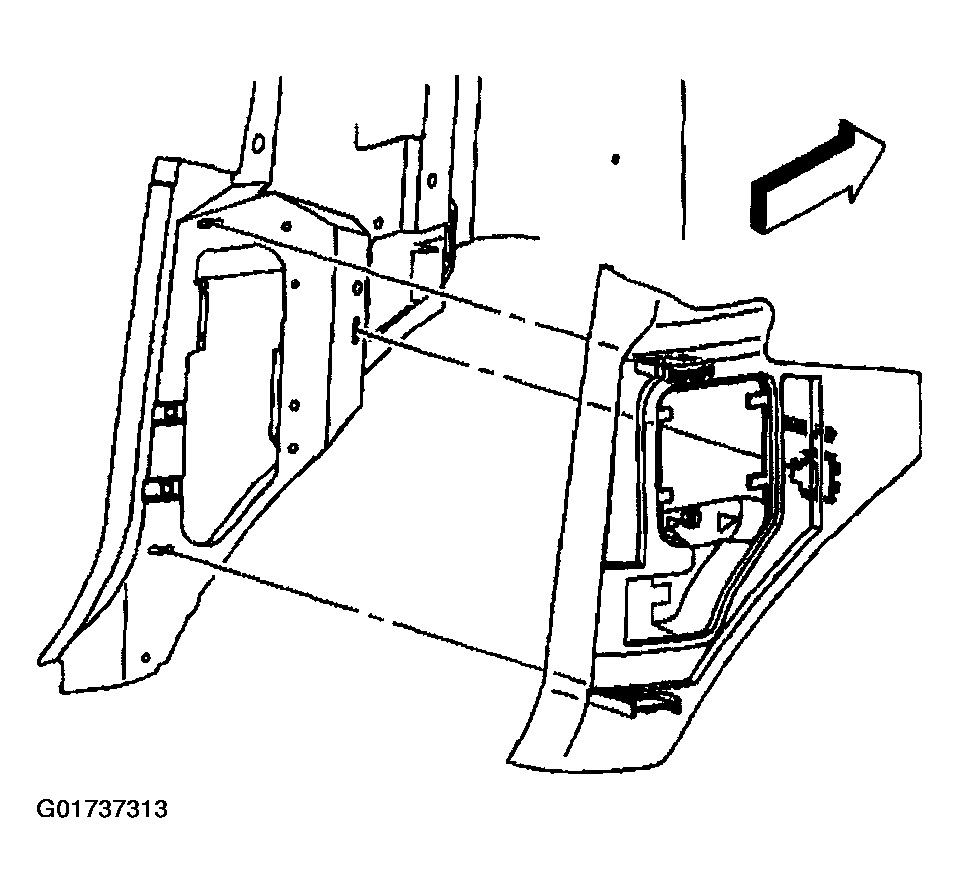

Fig 1: Installing Lower Hinge Pillar Trim
G01737313Courtesy of GENERAL MOTORS CORP.
