Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the passenger side body side trim panel to the vehicle.
  2. Position the trim panel. Press on the trim panel in order to engage threatening clips.
  3. Install the passenger side rear corner trim panel. Refer to Trim Panel Replacement - Right Rear Corner .
  4. Install the rear passenger seats as needed. Refer to SEAT REPLACEMENT - REAR BENCH (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - REAR BENCH (LUXURY Y91) .

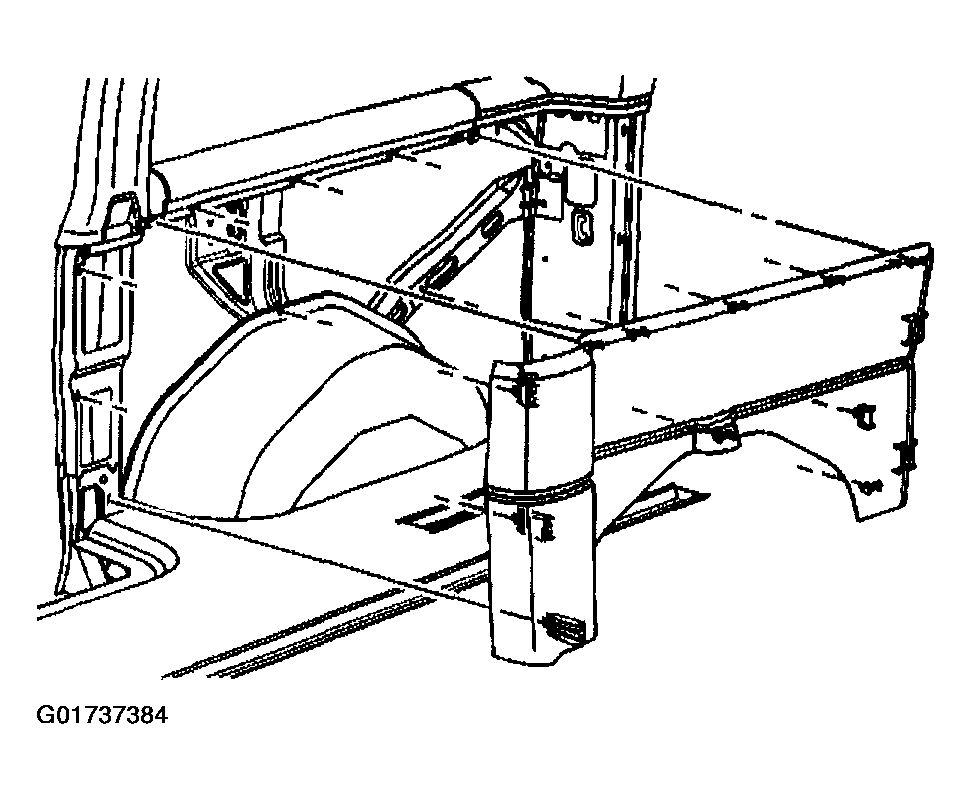

    Fig 1: Installing Passenger Side Body Side Trim Panel
    G01737384Courtesy of GENERAL MOTORS CORP.
