Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear passenger seats as needed. Refer to SEAT REPLACEMENT - REAR BENCH (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - REAR BENCH (LUXURY Y91) .
  2. Remove the driver side body side rear trim panel. Refer to Trim Panel Replacement - Body Side Rear .
  3. Remove the front door lower pillar garnish molding. Refer to Garnish Molding Replacement - Lower Pillar .
  4. Grasp and gently pull the body side front lower trim panel in order to disengage the retainer clips.
  5. Remove the body side front lower trim panel from the vehicle.
  6. Inspect the body side front lower trim panel for broken or missing retaining clips. Replace the retaining clips as needed.

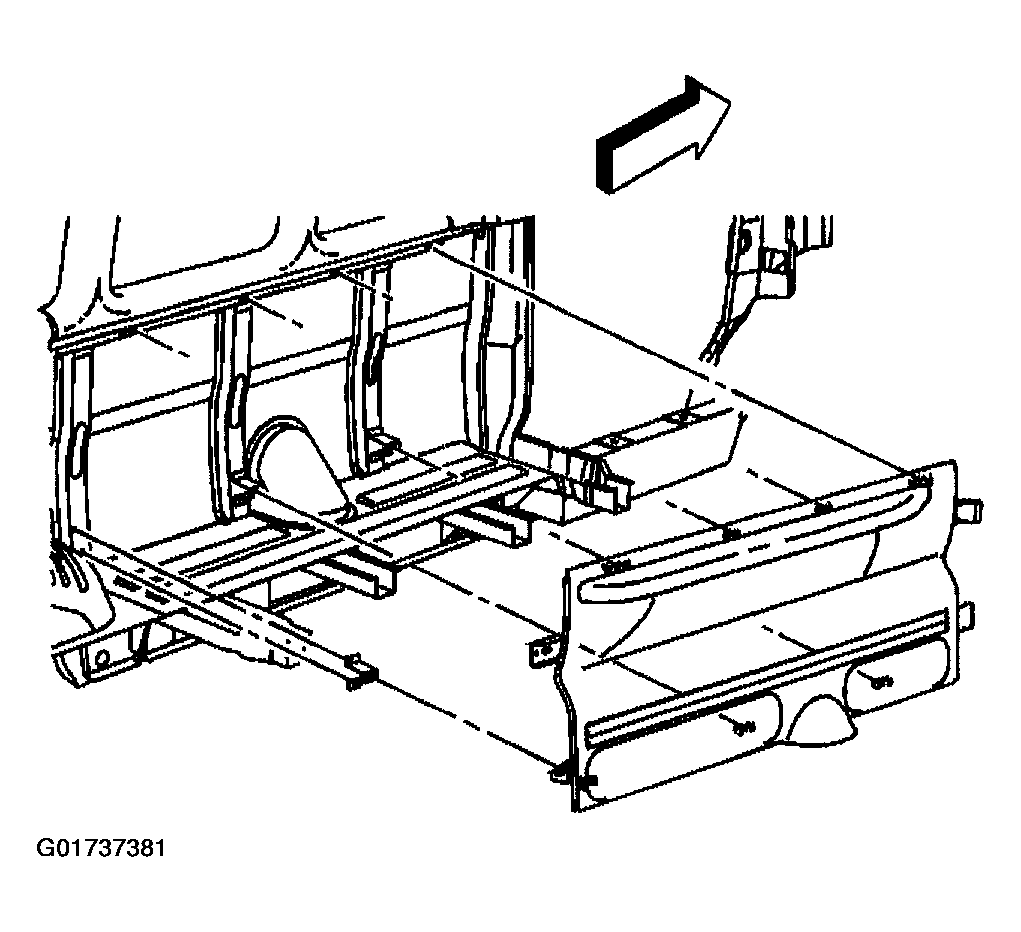

    Fig 1: Removing Body Side Front Lower Trim Panel
    G01737381Courtesy of GENERAL MOTORS CORP.
