Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear passenger seats as needed. Refer to SEAT REPLACEMENT - REAR BENCH (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - REAR BENCH (LUXURY Y91) .
  2. Grasp and gently pull the body side rear trim panel in order to disengage the retaining clips.
  3. Remove the body side rear trim panel from the vehicle.
  4. Inspect the body side rear trim panel for broken or missing retaining clips. Replace the retaining clips as needed.

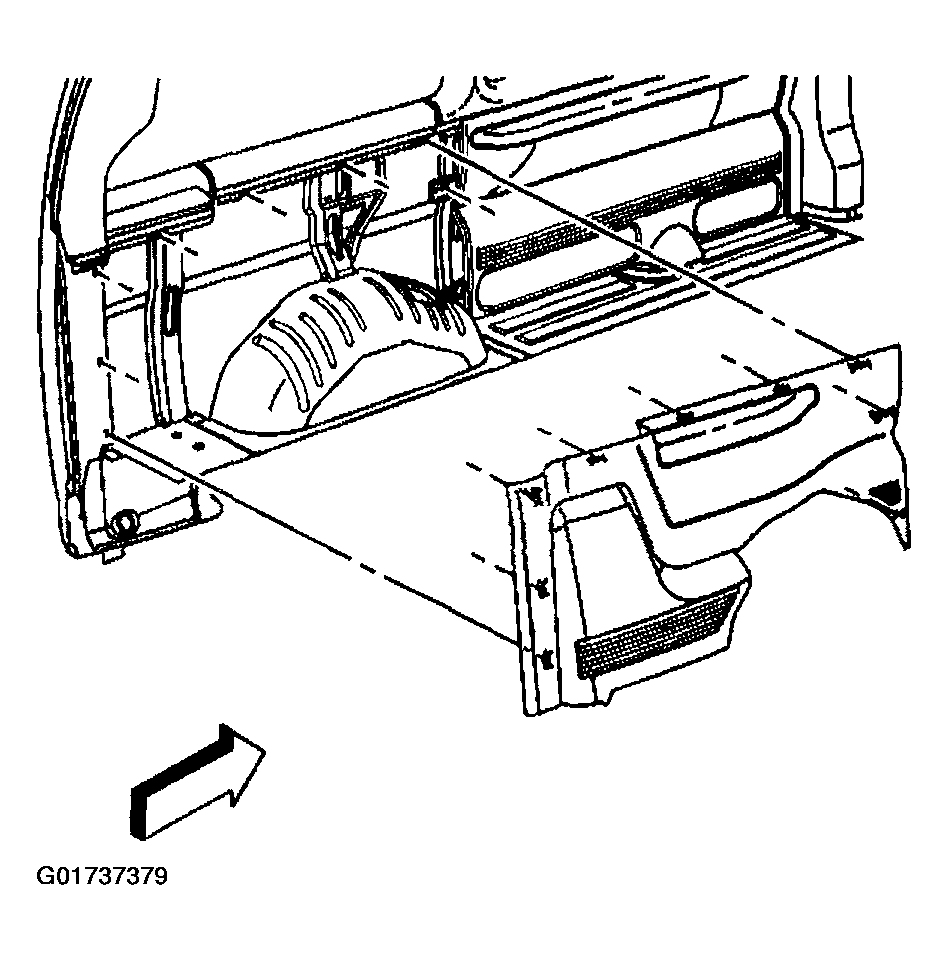

    Fig 1: Removing Body Side Rear Trim Panel
    G01737379Courtesy of GENERAL MOTORS CORP.
