Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the driver side body side rear trim panel to the vehicle.
  2. Press on the driver side body side rear trim panel in order to engage the retaining clips.
  3. Install the rear passenger seats as needed. Refer to SEAT REPLACEMENT - REAR BENCH (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - REAR BENCH (LUXURY Y91) .

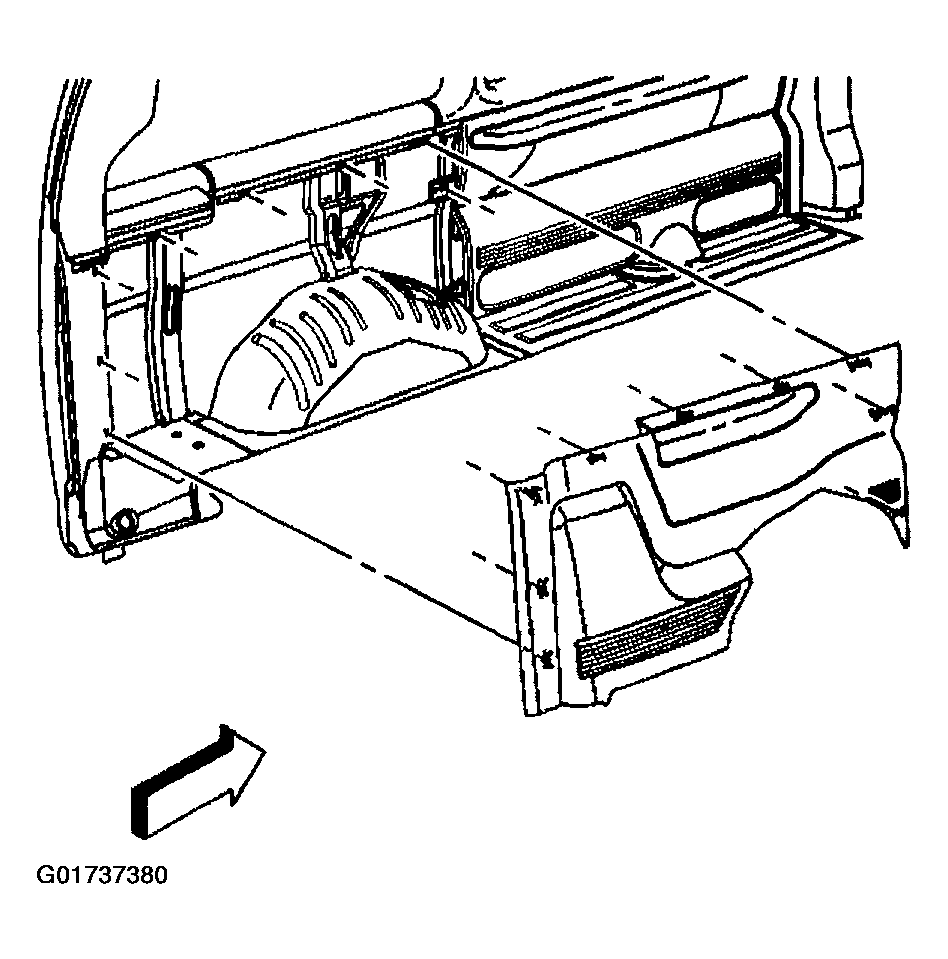

    Fig 1: Installing Body Side Rear Trim Panel
    G01737380Courtesy of GENERAL MOTORS CORP.
