Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the video screen (1) in the downward position.
  2. Remove the screws from the video screen.
  3. Pull down the overhead console (2) in order to release the retaining clips from the mounting bracket.
  4. Disconnect the electrical connectors from the overhead console.

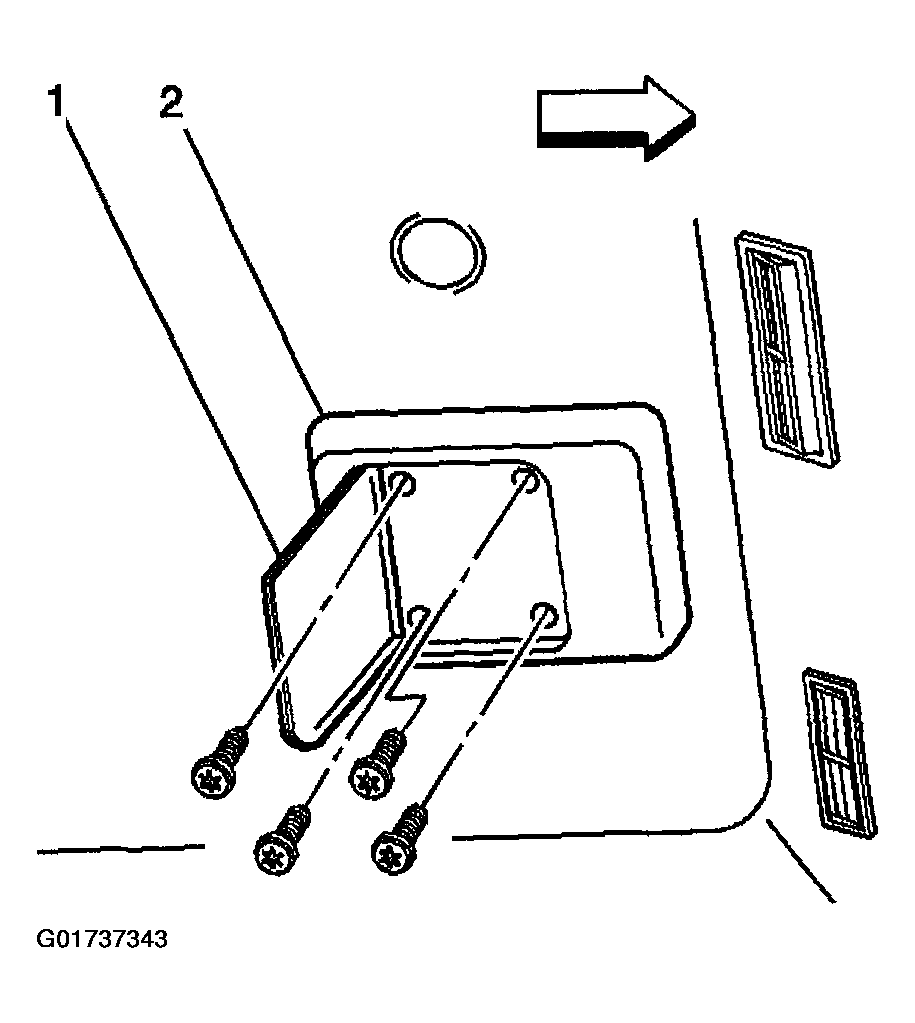

    Fig 1: Removing Overhead Console - Rear (Luxury Y91) Components
    G01737343Courtesy of GENERAL MOTORS CORP.
