Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the overhead console.
  2. Remove the screw from the dome lamp housing.
  3. Remove the overhead console by pulling down in order to release the retaining clips from the mounting bracket.
  4. Disconnect the electrical connectors from the overhead console.

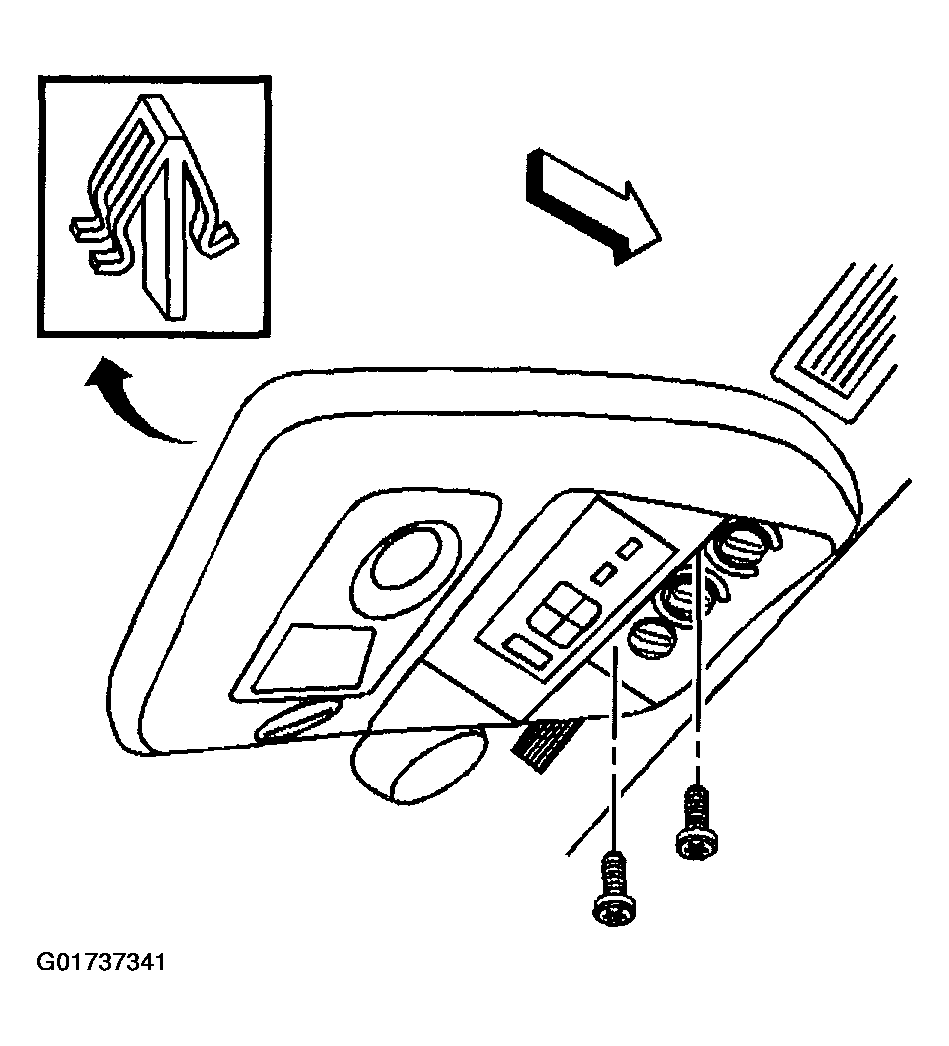

    Fig 1: Removing Overhead Console - Intermediate (Luxury Y91) Components
    G01737341Courtesy of GENERAL MOTORS CORP.
