Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the overhead console.
  2. Install the overhead console by pushing up the console in order to engage the retaining clips into the mounting bracket.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the screws that retain the overhead console to the mounting bracket.

    Tighten

    Tighten the overhead console screws to 2 N.m (18 lb in).

  4. Install the screw to the inside of the dome lamp housing.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

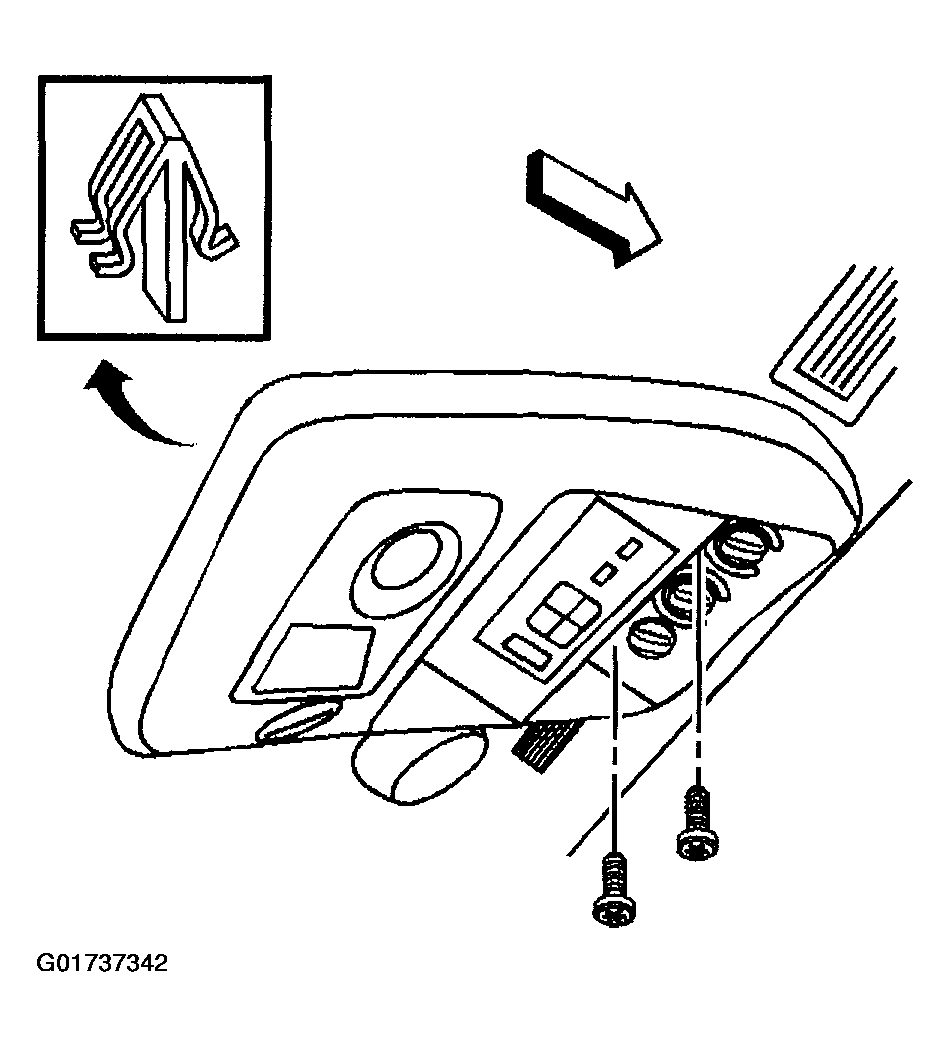

    Fig 1: Installing Overhead Console - Intermediate (Luxury Y91) Components
    G01737342Courtesy of GENERAL MOTORS CORP.
