Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver side body side rear trim panel as needed. Refer to Trim Panel Replacement - Body Side Rear .
  2. Remove the passenger side body side trim panel as needed. Refer to Trim Panel Replacement - Right Body Side .
  3. Remove the wheelhouse mat/carpet from the vehicle.

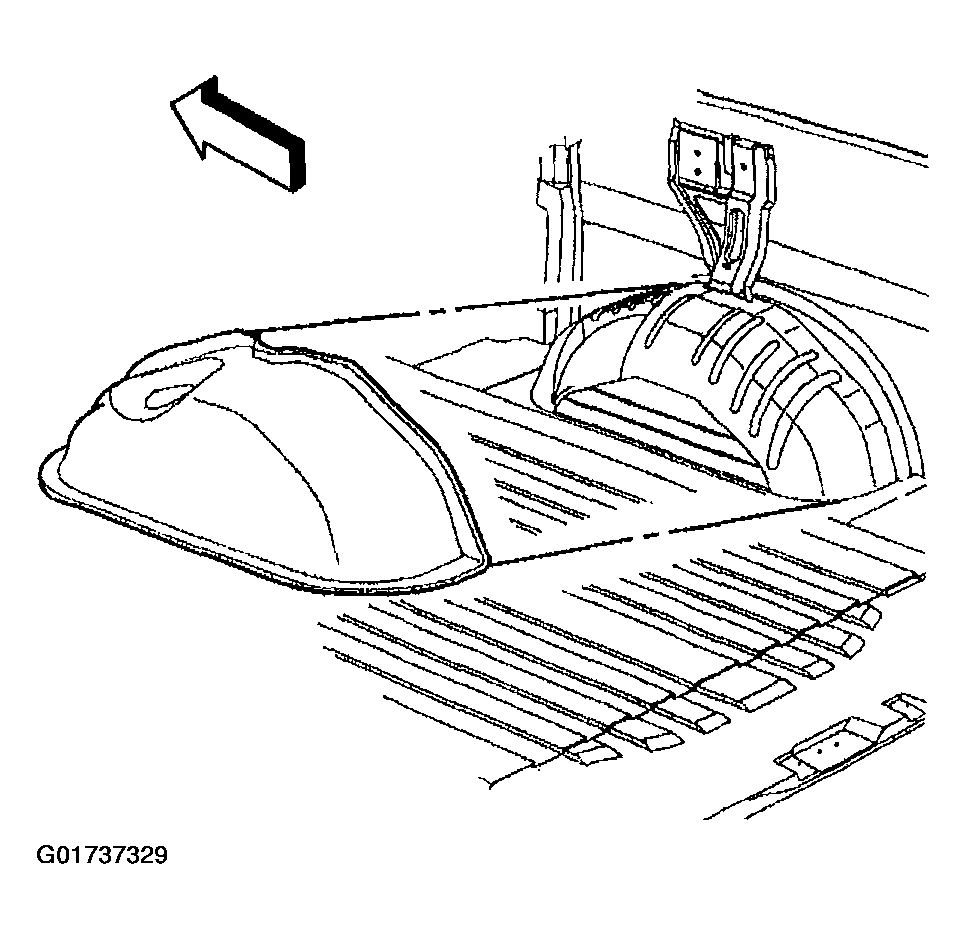

    Fig 1: Removing Wheelhouse Mat/Carpet
    G01737329Courtesy of GENERAL MOTORS CORP.
