Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear passenger seats. Refer to SEAT REPLACEMENT - REAR BENCH (ALL EXCEPT LUXURY or SEAT REPLACEMENT - REAR BENCH (LUXURY Y91) .
  2. Remove the driver side body side rear trim panel. Refer to Trim Panel Replacement - Body Side Rear .
  3. Remove the driver side body side front trim panel. Refer to Trim Panel Replacement - Left Body Side .
  4. Remove the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side .
  5. Remove the rear floor carpet trim plate. Refer to FLOOR TRIM PLATE REPLACEMENT - REAR .
  6. Remove the side door stepwell mat. Refer to Mat Replacement - Stepwell .
  7. Remove the rear floor mat/carpet from the vehicle.

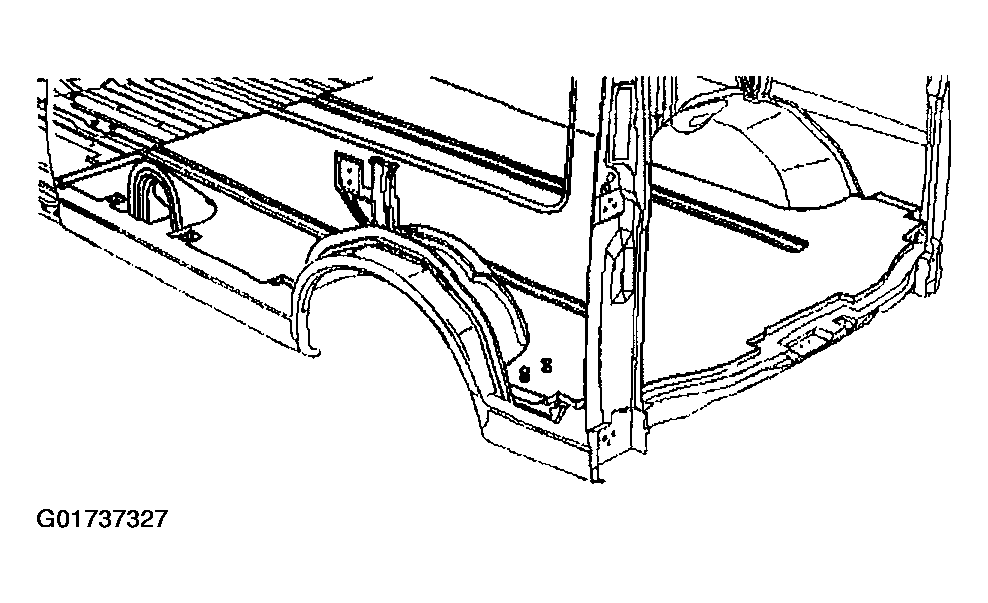

Fig 1: Removing Rear Floor Mat/Carpet
G01737327Courtesy of GENERAL MOTORS CORP.
