Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.
  1. Install the rear floor mat/carpet to the vehicle.
  2. Install the side door stepwell mat. Refer to Mat Replacement - Stepwell .
  3. Install the rear floor carpet trim plate. Refer to FLOOR TRIM PLATE REPLACEMENT - REAR .
  4. Install the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side .
  5. Install the driver side body side front trim panel. Refer to Trim Panel Replacement - Left Body Side .
  6. Install the driver side body side rear trim panel. Refer to Trim Panel Replacement - Body Side Rear .
  7. Install the rear passenger seats. Refer to SEAT REPLACEMENT - REAR BENCH (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - REAR BENCH (LUXURY Y91) .

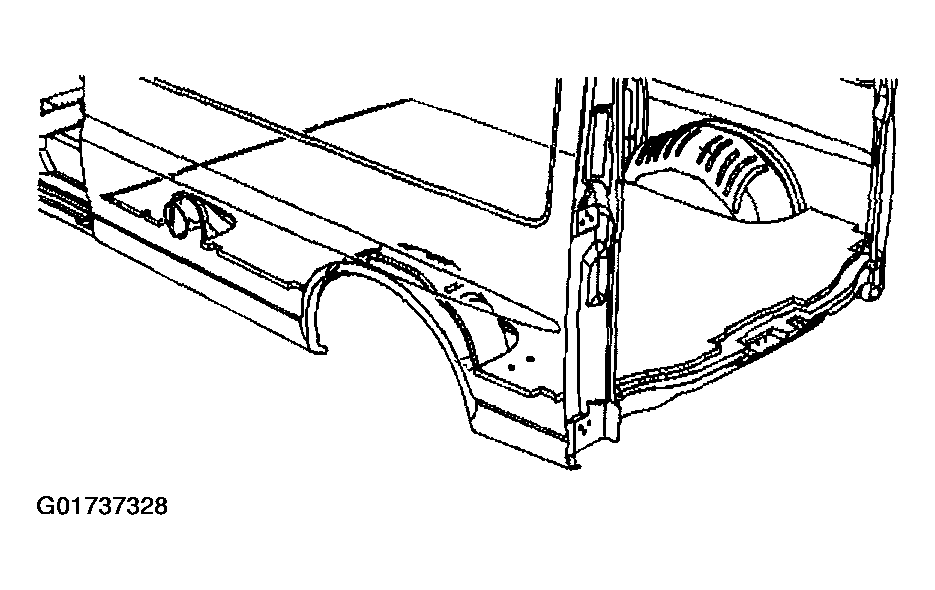

    Fig 1: Installing Rear Floor Mat/Carpet
    G01737328Courtesy of GENERAL MOTORS CORP.
