Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to SEAT REPLACEMENT - BUCKET (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - BUCKET (LUXURY Y91) .
  2. Remove the engine cover. Refer to Engine Cover Replacement .
  3. Remove the hinge pillar trim panel. Refer to Trim Replacement - Hinge Pillar .
  4. Remove the front door stepwell mat. Refer to Mat Replacement - Stepwell .
  5. Remove the front floor mat/carpet from the vehicle.

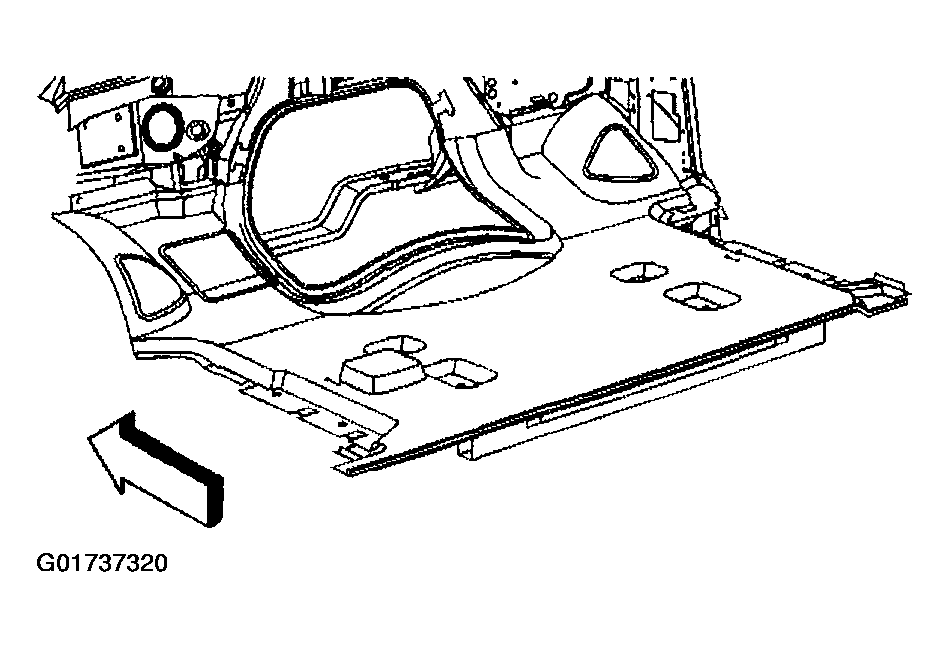

    Fig 1: Removing Front Floor Mat/Carpet
    G01737320Courtesy of GENERAL MOTORS CORP.
