Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear passenger seats. Refer to SEAT REPLACEMENT - REAR BENCH (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - REAR BENCH (LUXURY Y91) .
  2. Remove the front headliner. Refer to Headliner Replacement - Front .
  3. Remove the overhead console assembly, if equipped. Refer to Overhead Console Replacement - Intermediate (Luxury Y91)  and to Overhead Console Replacement - Rear (Luxury Y91)  .
  4. Remove the driver side body side front garnish molding. Refer to Garnish Molding Replacement - Left Body Side Upper .
  5. Remove the passenger side front corner garnish molding. Refer to Garnish Molding Replacement - Right Side Front .
  6. Remove the body side rear upper garnish moldings. Refer to Garnish Molding Replacement - Body Side Rear Upper  .
  7. Remove the seat belt anchor bolt. Refer to SEAT BELT REPLACEMENT - FRONT .
  8. Remove the coat hooks. Refer to Coat Hook Replacement .
  9. Remove the overhead Velcro® strips from the headliner.

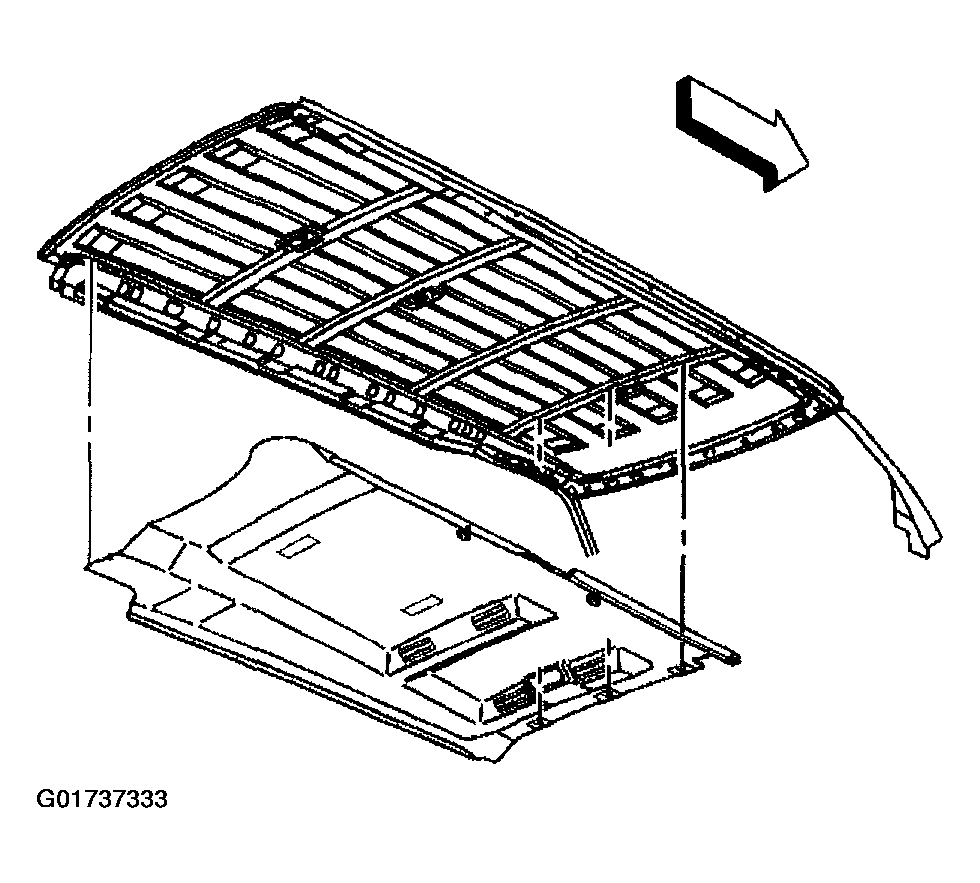

    Fig 1: Removing Overhead Velcro Strips From Headliner
    G01737333Courtesy of GENERAL MOTORS CORP.
  10. Remove the rear heater controls, if equipped. Refer to MAIN HVAC CONTROL ASSEMBLY .
  11. Remove the dome lamps. Refer to DOME LAMP REPLACEMENT (ALL EXCEPT LUXURY) or DOME LAMP REPLACEMENT (LUXURY Y91) .
  12. Remove the roof console speakers, if equipped. Refer to SPEAKER REPLACEMENT - ROOF CONSOLE (LUXURY Y91) .
  13. Slide the headliner from the vehicle rearward.
Fig 2: Sliding Headliner Rearward
G01737334Courtesy of GENERAL MOTORS CORP.
