Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunshades. Refer to Sunshade Replacement .
  2. Remove the console assembly, if equipped. Refer to Overhead Console Replacement - Front (Luxury Y91) .
  3. Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
  4. Remove the front door opening upper frame garnish molding. Refer to Garnish Molding - Front Door Opening Upper Frame .
  5. Remove the front door upper pillar garnish molding. Refer to Garnish Molding Replacement - Upper Pillar .
  6. Remove the dome lamp. Refer to DOME LAMP REPLACEMENT (ALL EXCEPT LUXURY) or DOME LAMP REPLACEMENT (LUXURY Y91) .
  7. Remove the rear heater controls. Refer to MAIN HVAC CONTROL ASSEMBLY .
  8. Remove the front headliner from the retaining clips at the rear edge of the headliner.
  9. Remove the front headliner from the vehicle.

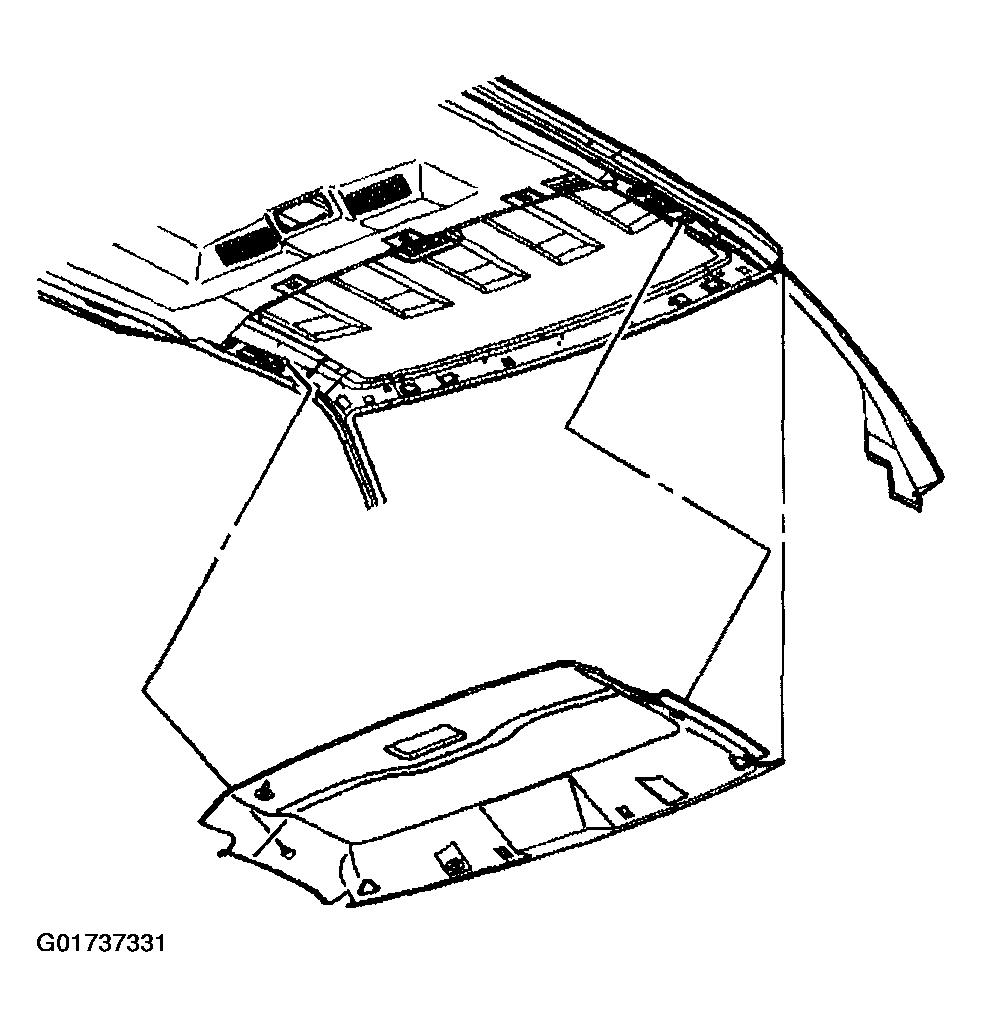

    Fig 1: Removing Front Headliner
    G01737331Courtesy of GENERAL MOTORS CORP.
