Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side .
  2. Remove the passenger side body side rear upper garnish molding. Refer to Garnish Molding Replacement - Body Side Rear Upper .
  3. Grasp and gently pull the passenger side front corner garnish molding down in order to disengage the retaining clips.
  4. Slip the seat belt through the slot in the passenger side front corner garnish molding.
  5. Remove the passenger side front corner garnish molding from the vehicle.
  6. Inspect the passenger side front corner garnish molding for broken or missing retaining clips. Replace the clips as needed.

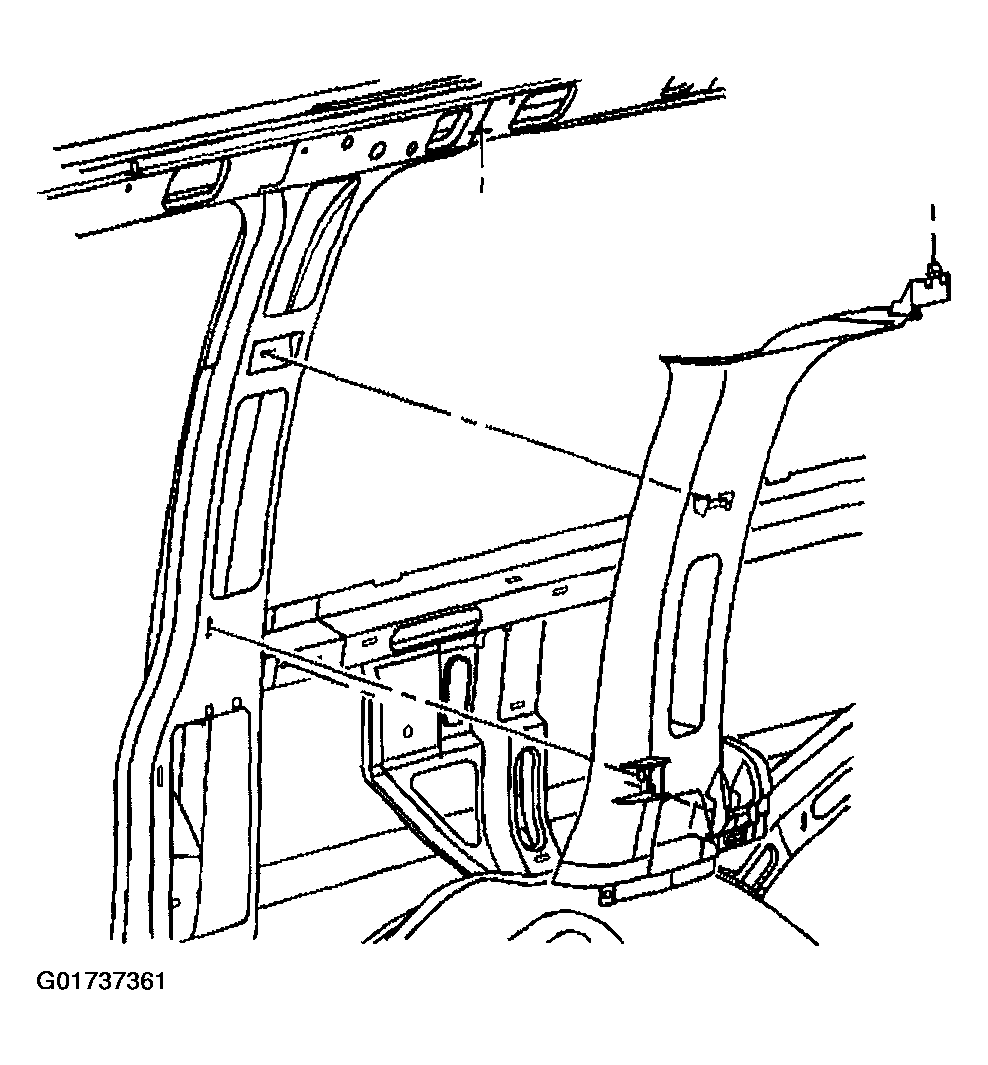

    Fig 1: Removing Passenger Side Front Corner Garnish Molding
    G01737361Courtesy of GENERAL MOTORS CORP.
