Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the passenger side front corner garnish molding to the vehicle.
  2. Slip the seat belt through the slot in the passenger side front corner garnish molding.
  3. Press on the passenger side front corner garnish molding in order to engage the retaining clips.
  4. Install the passenger side body side rear upper garnish molding. Refer to Garnish Molding Replacement - Body Side Rear Upper .
  5. Install the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side .

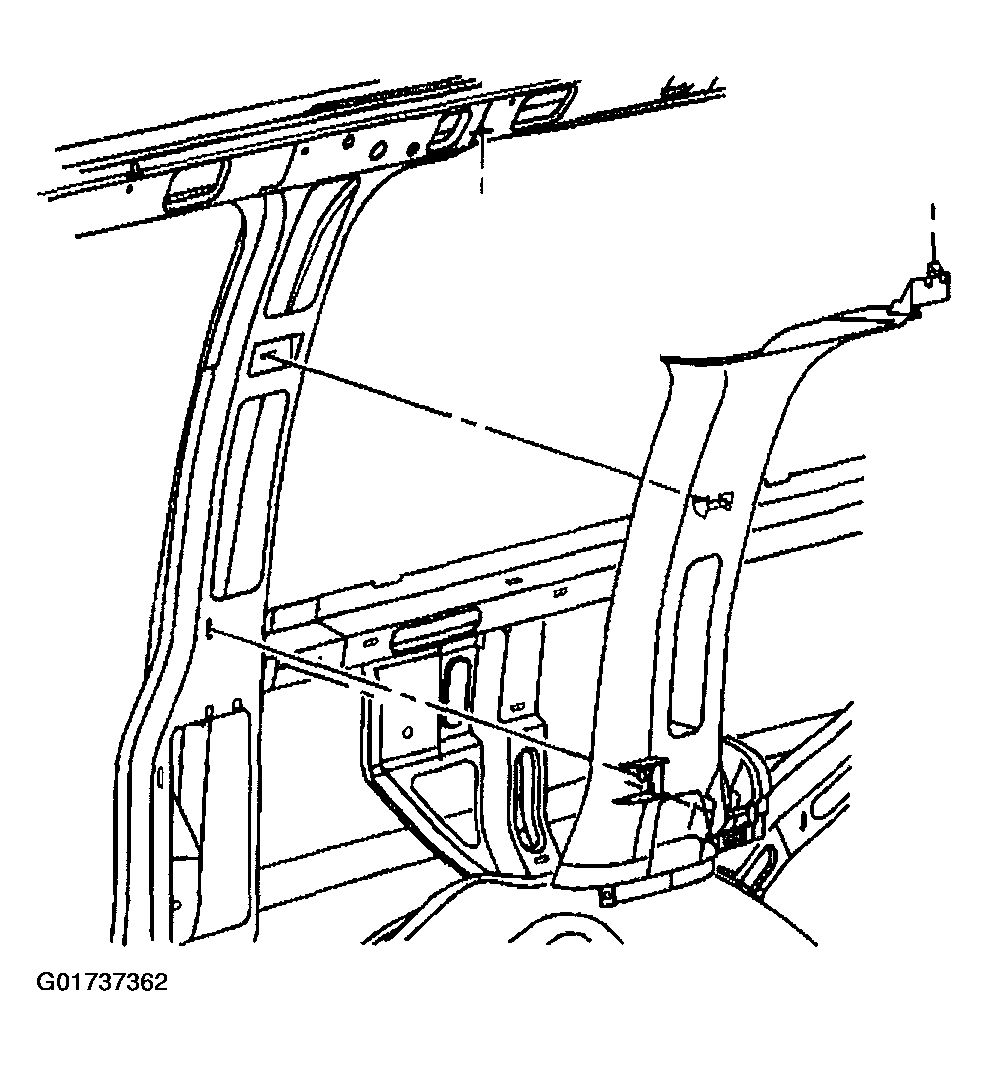

    Fig 1: Installing Passenger Side Front Corner Garnish Molding
    G01737362Courtesy of GENERAL MOTORS CORP.
