Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp and gently pull the rear door opening frame garnish molding down in order to disengage the retaining clips.
  2. Remove the rear door opening frame garnish molding from the vehicle.
  3. Inspect the rear door opening frame garnish molding for broken or missing retaining clips. Replace the clips as needed.

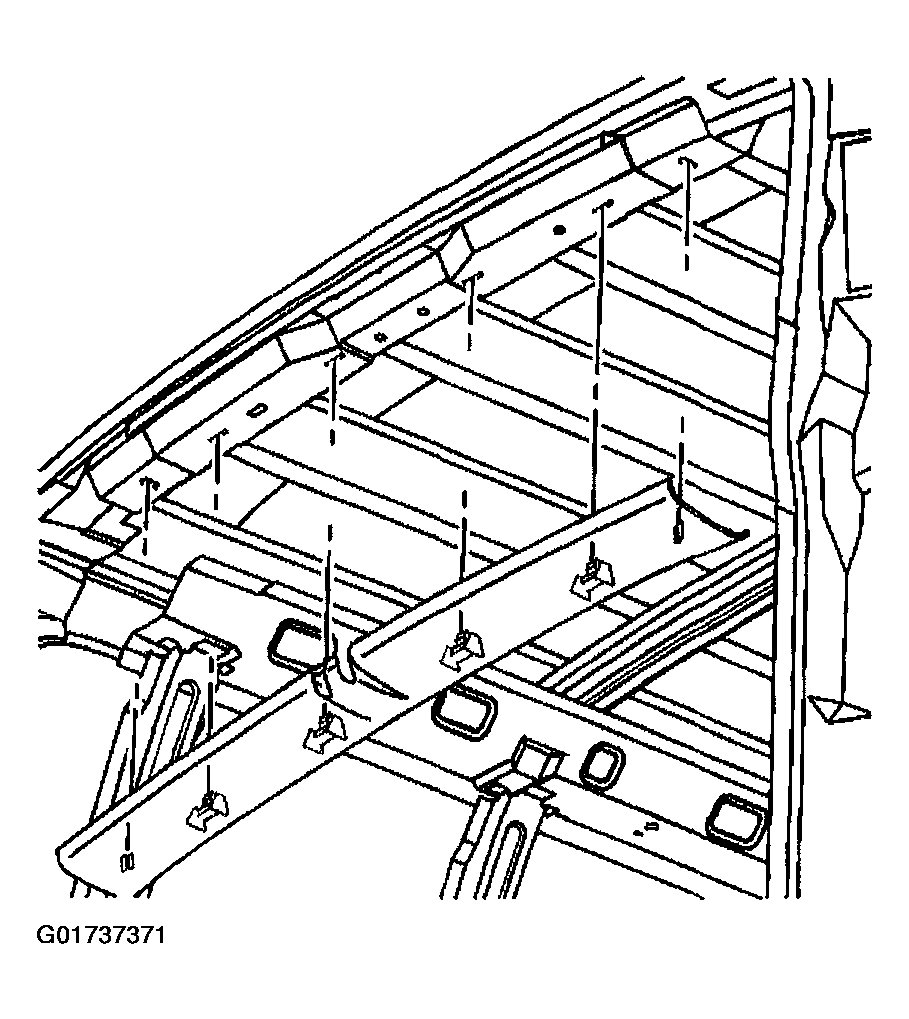

    Fig 1: Removing Rear Door Opening Frame Garnish Molding
    G01737371Courtesy of GENERAL MOTORS CORP.
