Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear door opening frame garnish molding to the vehicle.
  2. Press on the rear door opening frame garnish molding in order to engage the retaining clips.

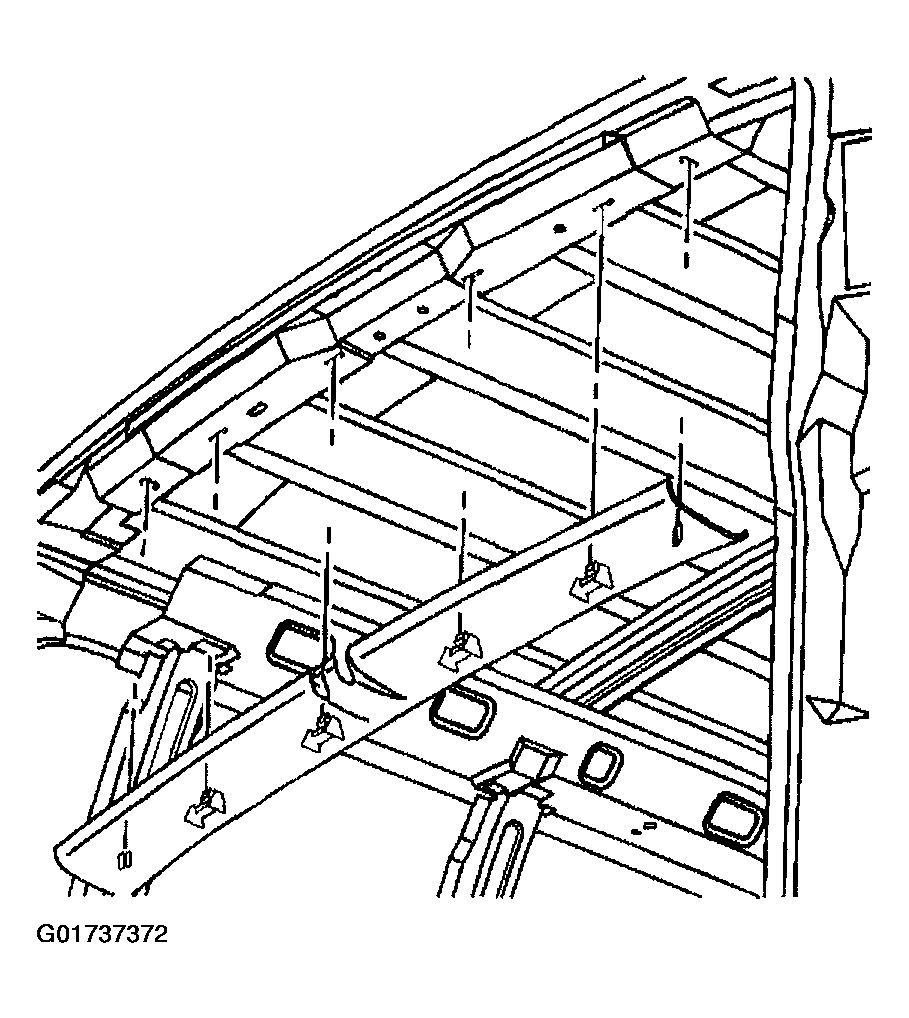

    Fig 1: Installing Rear Door Opening Frame Garnish Molding
    G01737372Courtesy of GENERAL MOTORS CORP.
