Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front door lower pillar garnish molding to the vehicle.
  2. Press on the front door lower pillar garnish molding in order to engage the retaining clips.
  3. Install the seat belt through the slot in the front door lower pillar garnish molding.
  4. Install the front door upper pillar garnish molding. Refer to Garnish Molding Replacement - Upper Pillar .
  5. Install the 2 screws to secure the garnish molding.

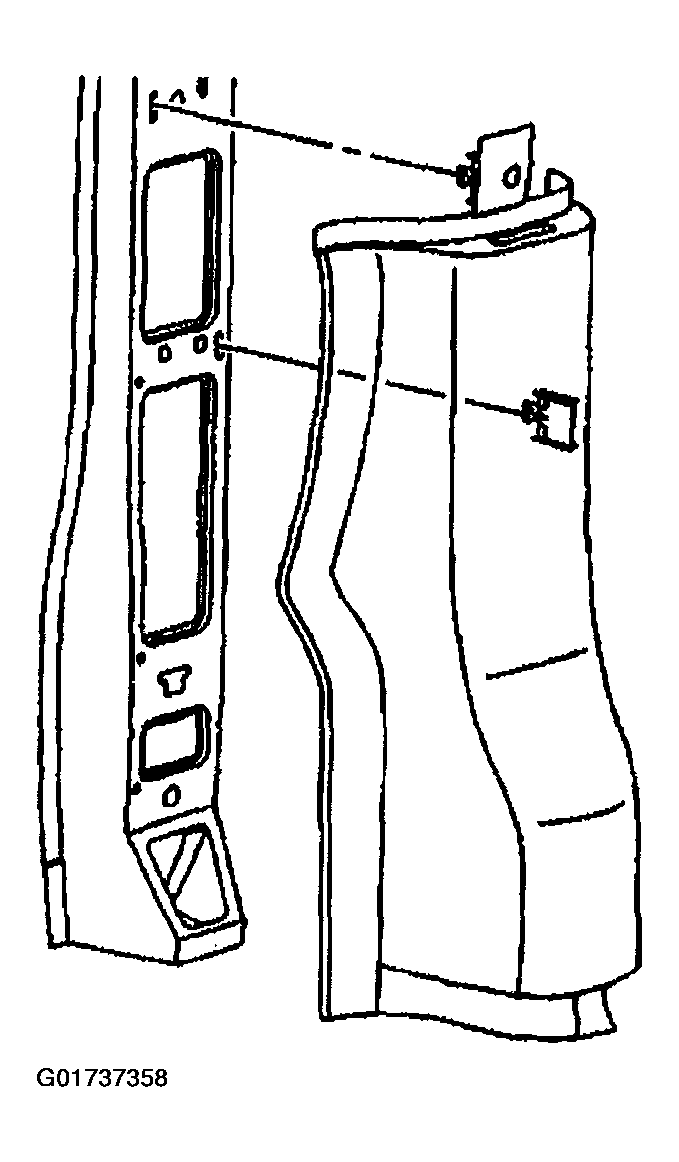

    Fig 1: Installing Front Lower Pillar Garnish Molding
    G01737358Courtesy of GENERAL MOTORS CORP.
