Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left body side upper garnish molding to the vehicle.
  2. Press on the left body side upper garnish molding in order to engage the retaining clips.
  3. Install the left body side upper trim panel. Refer to Trim Panel Replacement - Left Body Side .
  4. Install the body side rear upper garnish molding. Refer to Garnish Molding Replacement - Body Side Rear Upper .
  5. Install the driver side front door upper pillar garnish molding. Refer to Garnish Molding Replacement - Upper Pillar .

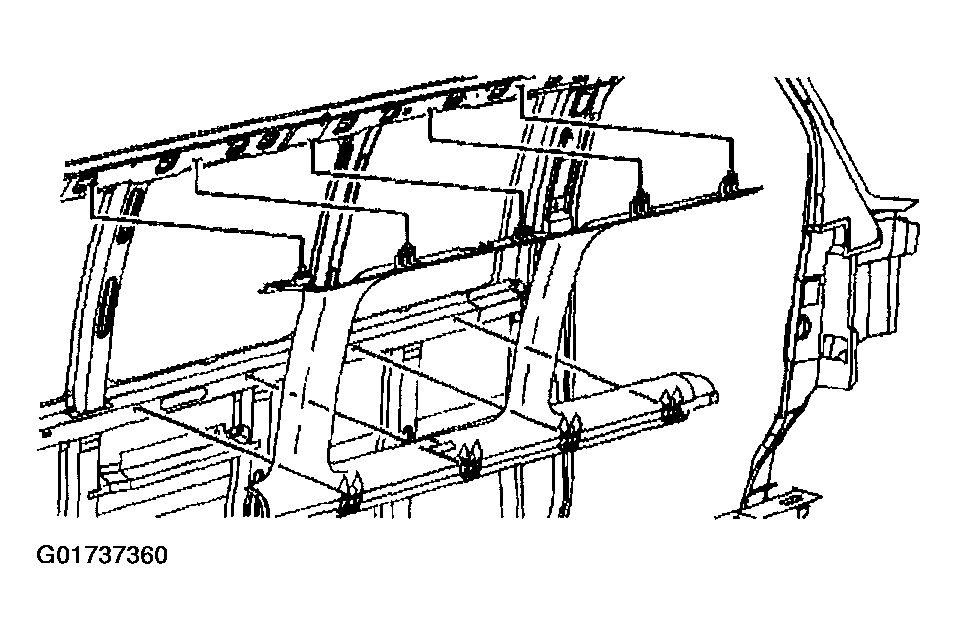

    Fig 1: Installing Left Body Side Upper Garnish Molding
    G01737360Courtesy of GENERAL MOTORS CORP.
